FN2310X-6-06

Overview

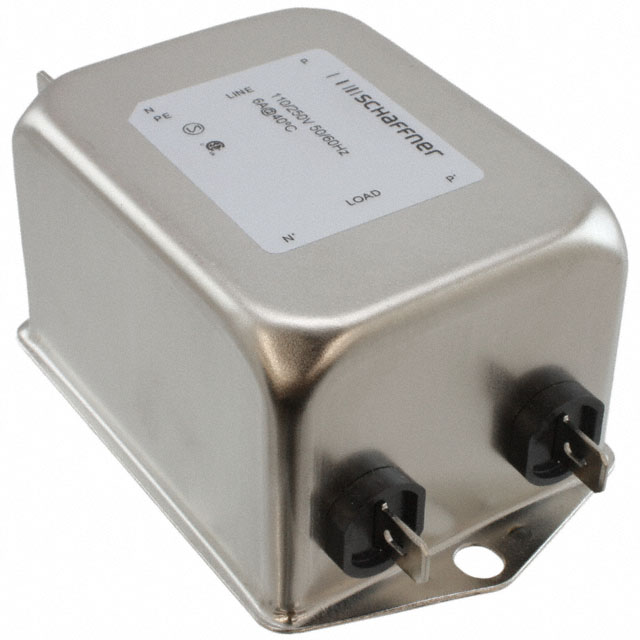

The Schaffner FN2310X-6-06 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 6 A and operates at AC voltages of 110 V or 250 V within a frequency range of DC to 400 Hz. The component features a two-stage configuration with quick-connect terminals and an inductance of 7.8 mH. It functions reliably between -25°C and 100°C, holding CSA, ENEC, and UR certifications while complying with RoHS3 standards.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with quick-connect termination style
• Wide operating temperature range from -25°C to 100°C
• Certified for international safety standards including UL and ENEC

Applications

• Industrial control systems requiring single-phase power conditioning
• Medical equipment needing certified EMC protection
• General purpose electronic devices operating on 110V/250VAC lines
• Inverter and renewable energy resource interfaces

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct terminal type and voltage rating compatibility. Confirm RoHS3 compliance status if required by project specifications. Check for recent packaging material changes documented in Product Change Notices. Ensure chassis mounting dimensions align with enclosure designs before procurement.

Selection Notes

Select this model for applications requiring single-phase filtration with a 6 A capacity. The two-stage design offers superior attenuation compared to single-stage alternatives. Verify that the quick-connect terminals match existing wiring harnesses. Consider the physical chassis mount footprint when designing panel layouts. Ensure the operating frequency range covers the specific application requirements up to 400 Hz.

Part Context

This component belongs to the FN2070/FN2310 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. These filters are engineered for general-purpose EMC mitigation in power supply inputs. The series provides robust noise reduction for sensitive electronics while maintaining safety compliance across global markets.

Replacement Considerations

Public confirmed substitute part numbers include 5500.2612.04 by SCHURTER Inc. and AMI-27B-6-1 by Altran Magnetics, LLC. Verify electrical parameters and mounting configurations before substitution.
