FN2320Y-10-06

Overview

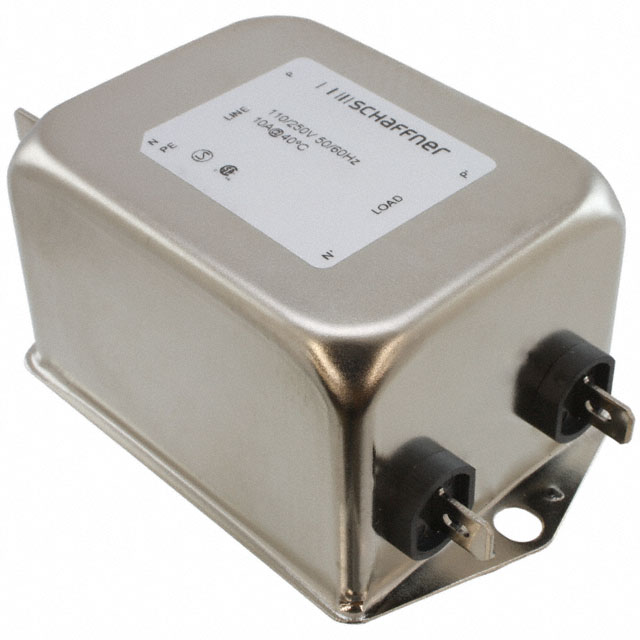

The Schaffner FN2320Y-10-06 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates within a frequency range of DC to 400Hz and supports a rated AC voltage of 250VAC with a current capacity of 10A. The component features a two-stage configuration utilizing quick connect terminals for circuit attachment. Its operational temperature range spans from -25°C to 100°C, ensuring reliability in varied thermal environments.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design for secure mechanical installation
• Quick connect terminal style for simplified wiring

Applications

• General purpose EMI/EMC filtering
• Safety-critical equipment power lines

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm availability status and technical specifications. Ensure that the selected component meets all required safety certifications and environmental standards for the intended application before procurement.

Selection Notes

Select this model based on its 10A current rating and 250VAC voltage capability. Consider the two-stage topology for applications requiring robust interference reduction. Confirm compatibility with chassis mounting requirements and quick connect termination methods during system integration planning.

Part Context

This component belongs to the FN2320 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is engineered for general-purpose filtering applications, providing reliable performance in industrial and commercial electronic systems requiring effective electromagnetic interference mitigation.

Replacement Considerations

Consult official substitution guides for verified alternative part numbers. Do not assume cross-compatibility with other series without explicit manufacturer confirmation regarding electrical parameters and physical dimensions.
