FN2320Y-20-06

$22.13

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN 2320
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:b769b4118351 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 20A CHASS MNT
Series：FN 2320
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：20 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：1mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2320Y-20-06

Overview

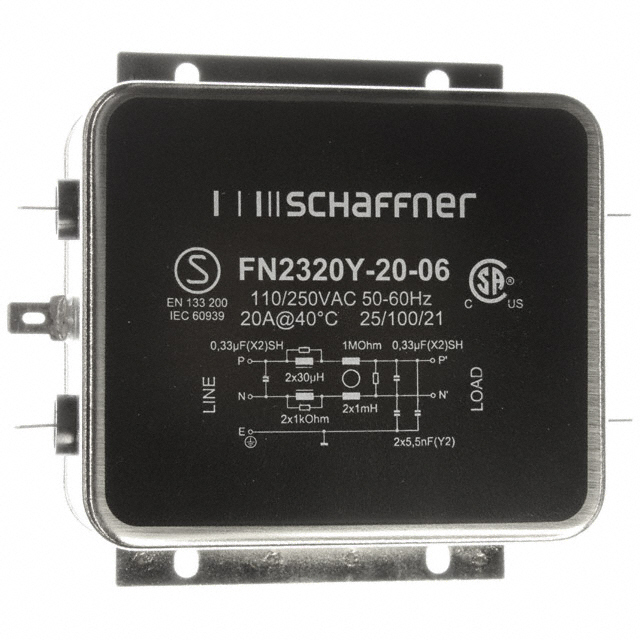

The Schaffner FN2320Y-20-06 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 20 A and operates at AC voltages of 110 V or 250 V, with a frequency range of DC to 400 Hz. The unit features a two-stage configuration and utilizes quick-connect terminals for electrical termination. Certified by CSA, ENEC, and UR, it functions within an operating temperature range of -25°C to 100°C.

Feature Summary

Two-stage filtering architecture for enhanced noise suppression
Chassis mount installation for secure integration
Quick-connect terminal style for simplified wiring
Global certification compliance including CSA, ENEC, and UR

Applications

Industrial machinery power input stages
Medical equipment power supplies
General purpose electronic systems requiring EMI reduction

Procurement Notes

Verify the specific voltage rating (110V/250VAC) and current capacity (20A) against your system requirements before ordering. Confirm that the quick-connect terminal type matches your existing wiring harnesses. Ensure the chassis mounting dimensions fit your enclosure design. Check for RoHS3 compliance if required by your manufacturing standards.

Selection Notes

Select this model when a single-phase, high-current (20A) solution is needed for chassis-mounted applications. The two-stage design offers superior attenuation compared to single-stage units. Ensure the operating environment stays within the -25°C to 100°C temperature range. Verify that the physical size accommodates the available space in the equipment chassis.

Part Context

This component belongs to the FN2320 series of single-phase AC/DC chassis filters from Schaffner. These filters are engineered for general-purpose and medical applications where compact size and high performance are critical. The series provides reliable EMI/RFI suppression for sensitive electronic loads connected to AC power lines.
