FN2320Y-3-06

Overview

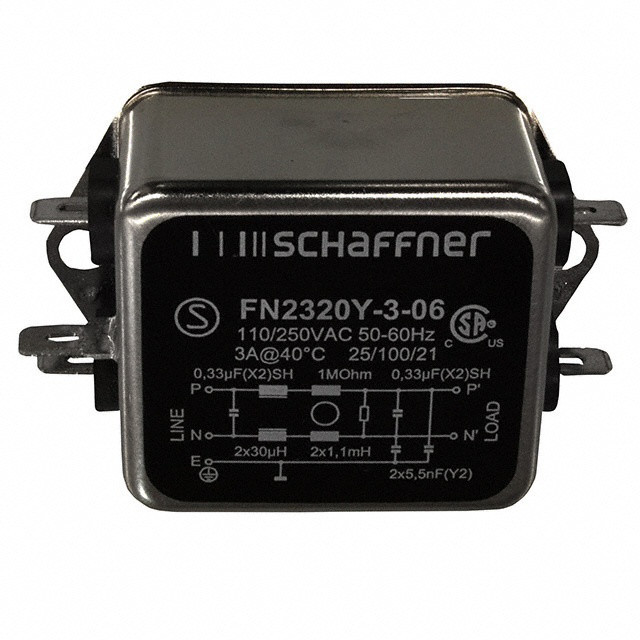

The Schaffner FN2320Y-3-06 is a single-phase EMC/EMI line filter module designed for chassis mounting. It supports a rated AC voltage of 250VAC and a continuous current of 3A. The component operates within a frequency range of DC to 400Hz and utilizes quick connect termination styles for circuit integration.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Engineered for direct chassis mounting applications
• Utilizes quick connect terminals for simplified wiring

Applications

• General purpose electronic equipment filtering
• Industrial control systems
• Power supply input stages

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the 250VAC rating and 3A current capacity align with the specific application requirements. Ensure compatibility with the required quick connect terminal types and chassis mounting dimensions.

Selection Notes

Select this model when a single-stage, single-phase filter is required for low-current applications up to 3A. Consider the operating temperature range and certification requirements such as UL or CSA if applicable to the target market. Evaluate space constraints for chassis mounting versus PCB options.

Part Context

This component belongs to the Schaffner FN2320 series, which offers economical solutions for general-purpose EMI filtering. The series is characterized by compact designs suitable for various industrial and commercial electronics requiring basic noise attenuation on AC power lines.

Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitutes. Ensure any replacement maintains the same phase configuration, current rating, and voltage tolerance.
