FN2320Y-6-06

$10.96

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：FN 2320
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:7121cc8e3ca8 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：FN 2320
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, SEMKO
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：1.9mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2320Y-6-06

Overview

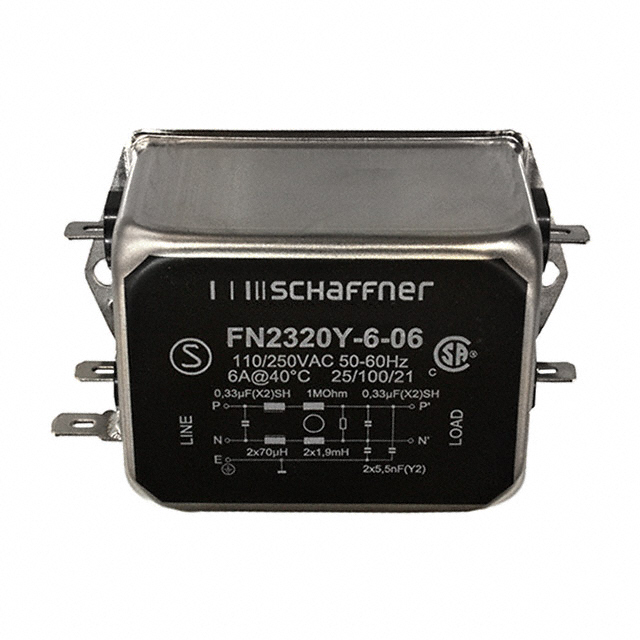

The FN2320Y-6-06 is a single-phase EMC/EMI line filter from the Schaffner FN2320 series, designed for chassis mounting. It features a two-stage configuration with quick-connect terminals. The component supports a rated current of 6 A and operates within a voltage range of 110V to 250V AC. It functions effectively across a frequency spectrum from DC to 400Hz. The unit is certified by CSA, ENEC, and UR agencies, ensuring compliance with international safety standards for electronic equipment.

Feature Summary

Two-stage filtering architecture for enhanced noise attenuation
Chassis mount installation style for secure integration
Quick connect terminal style for simplified wiring
Certified for global safety compliance

Applications

Industrial power supply units
Medical equipment power inputs
General purpose electronic devices requiring EMI suppression

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct terminal type and certification requirements. Confirm that the chassis mounting dimensions align with the target enclosure design. Check for any recent product change notices regarding packaging or material composition updates before placing orders.

Selection Notes

Select this model when a single-phase, two-stage filter is required for chassis-mounted applications. Ensure the operating environment stays within the specified temperature range. Verify that the 6A current rating meets the system's maximum load requirements. Consider the quick-connect interface compatibility with existing harness designs.

Part Context

This component belongs to the FN2320 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides economic solutions for general-purpose filtering needs in various industrial and commercial applications. It shares design characteristics with other models in the FN2000 family but offers specific performance parameters tailored for 6A applications.
