Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：FN 2410
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
Download product information
Overview

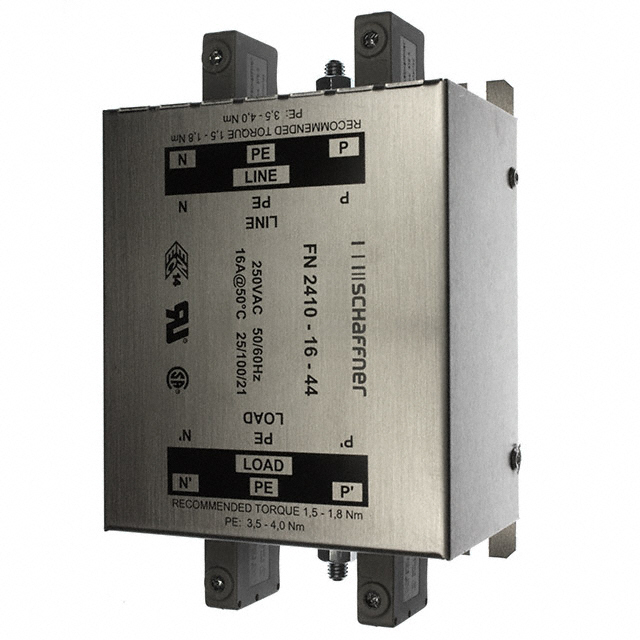

The Schaffner FN2410-16-44 is a single-phase power line filter designed for chassis mounting. It features terminal block input and output connections. The component has a current rating of 16 A and a voltage rating of 250 VAC. It operates within a frequency range of 0 Hz to 400 Hz. The maximum leakage current is specified at 2.6 mA. The unit supports an operating temperature range from -25 °C to +100 °C. It complies with UL, CSA, and IEC/EN standards.
Feature Summary
- Provides EMC/RFI filtering for single-phase power lines
- Utilizes terminal block connections for input and output wiring
- Designed for secure chassis mounting installation
Applications
- Single-phase power conditioning for small to medium size machines
- Electromagnetic compatibility filtering in industrial equipment
- Power line noise suppression in general industrial machinery
Procurement Notes
Verify the specific part number suffix against official Schaffner documentation to confirm terminal configuration and compliance certifications. Ensure the application environment falls within the specified voltage, current, and temperature ratings. Confirm that chassis mounting provisions align with the target enclosure design requirements before procurement.
Selection Notes
Select this model for applications requiring 16 A capacity in single-phase systems. Consider the chassis mount style and terminal block interface for integration. Evaluate the 250 VAC rating against system voltage levels. Verify that the 0 Hz to 400 Hz operational range matches the power source frequency specifications.
Part Context
This component belongs to the Schaffner FN2410 series of line filters. The series is engineered for use in small to medium-sized industrial machines and equipment. These filters address electromagnetic interference issues in single-phase power distribution networks commonly found in manufacturing and automation settings.
Replacement Considerations
The FN2412H-16-44 is a documented substitute within the same product family. Verify compatibility regarding voltage ratings and physical dimensions before substitution.
