FN2410-25-33

Overview

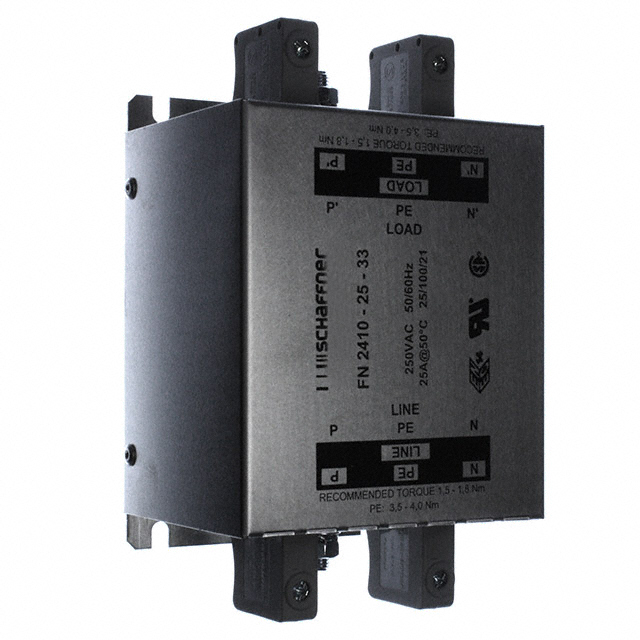

The Schaffner FN2410-25-33 is a single-phase EMC/RFI power line filter designed for chassis mounting. It features a rated current of 25 A and operates at voltages up to 250 VAC. The component utilizes terminal block connections for both input and output lines. Its frequency range extends from 0 Hz to 400 Hz, providing attenuation for electromagnetic interference in standard industrial power applications.

Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Terminal block interface for secure electrical connections
• Chassis mount design for stable mechanical integration

Applications

• Small to medium size machines
• Industrial equipment power conditioning
• Single-phase power supply protection

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct voltage and current ratings. Confirm terminal block orientation and mounting hole dimensions match the target chassis design. Check for RoHS compliance declarations if required by local regulations. Ensure the operating environment temperature falls within the specified component limits.

Selection Notes

Select this model for single-phase systems requiring 25 A capacity with low-frequency noise reduction. Compare insertion loss characteristics against system-specific EMI requirements. Evaluate physical footprint constraints relative to available chassis space. Consider thermal management needs based on continuous load conditions and ambient temperatures.

Part Context

This component belongs to the FN2410 series, which targets small to medium-sized machinery. The series provides standardized EMC solutions for industrial environments. It complements other Schaffner filters by offering a balance between performance and compact form factor for single-phase applications.

Replacement Considerations

The FN2410H-25-33 is a potential variant within the same family. Verify if the 'H' designation indicates enhanced specifications or different packaging. Cross-reference pinouts and mounting dimensions before substitution.
