FN2410-32-33

Overview

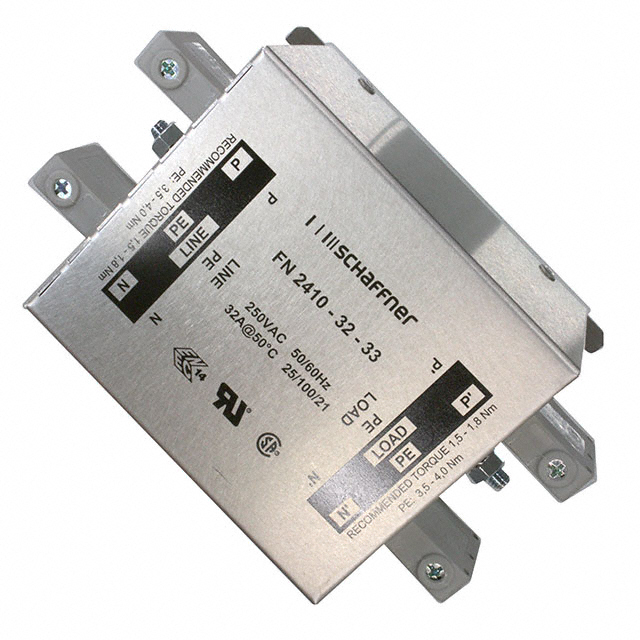

The FN2410-32-33 is a single-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount style with terminal block termination for both input and output connections. The unit is rated for 32 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 400 Hz. Key electrical specifications include a maximum leakage current of 1.49 mA at 120VAC, 60Hz. The device complies with UL, CSA, and IEC/EN standards and functions within an ambient temperature range of -25°C to +100°C.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Utilizes terminal block termination for secure wiring connections
• Designed for direct chassis mounting in industrial enclosures

Applications

• Industrial machinery power conditioning
• Medical equipment noise reduction
• Telecommunications infrastructure filtering

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm terminal type and mounting configuration. Ensure the selected variant matches the required current rating and certification marks for your target market. Cross-reference manufacturer part numbers with authorized distributor listings to confirm authenticity and availability status before finalizing orders.

Selection Notes

Select this component when a high-current single-phase filter is required for chassis installation. Confirm that the terminal block interface aligns with existing wiring harnesses. Verify that the 32 A rating accommodates peak load requirements without exceeding thermal limits. Check compliance certifications against regional regulatory mandates prior to integration into sensitive electronic systems.

Part Context

This component belongs to the FN2410 series of standard performance filters from Schaffner. The series offers various current ratings and termination options tailored for different power line applications. The FN2410-32-33 specifically addresses higher current demands while maintaining compact chassis-mount dimensions suitable for dense panel layouts.

Replacement Considerations

FN2410-32-33
