FN2410-45-33

Overview

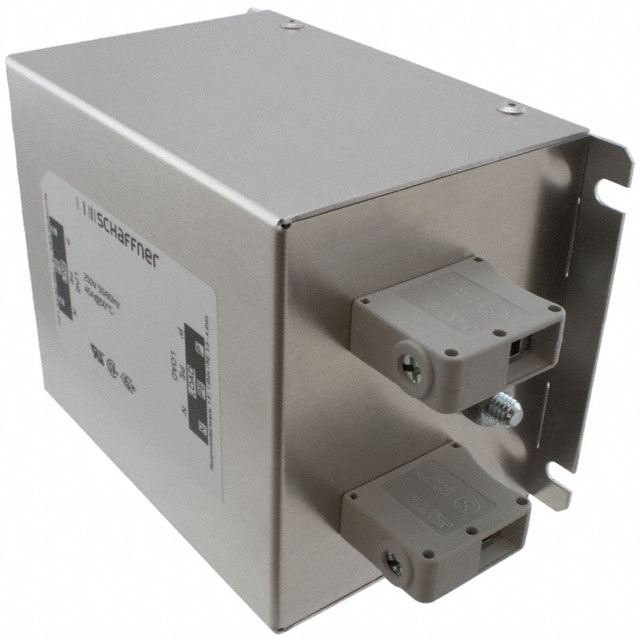

The Schaffner FN2410-45-33 is a single-phase EMC/RFI power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 45 A, operating within a frequency range of 0 Hz to 400 Hz. The unit utilizes terminal block termination and exhibits a maximum leakage current of 2.6 mA. Certified by UL, CSA, and IEC/EN standards, it functions reliably in temperatures from -25°C to +100°C.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Engineered for direct chassis installation using terminal block connections
• Complies with international safety and EMC certification requirements

Applications

• Industrial machinery power input stages
• Medical equipment power supplies
• Commercial IT infrastructure systems

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct terminal configuration and certification status. Confirm that the required current and voltage ratings align with the system design specifications before procurement. Check for any recent packaging or material change notices that may affect compatibility or handling procedures.

Selection Notes

Select this component when a robust single-phase EMI filter is required for high-current applications up to 45 A. Ensure the chassis mounting style and terminal block interface match the enclosure design. Verify that the operating temperature range covers the intended environmental conditions and that the low leakage current meets safety regulations for sensitive equipment.

Part Context

This model belongs to the FN2410 series of AC/DC chassis filters manufactured by Schaffner EMC Inc. The series is characterized by its compact form factor suitable for panel integration. It serves as a standard solution for noise attenuation in power distribution networks where space constraints and high current capacity are critical design factors.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the manufacturer's cross-reference guide for equivalent models with matching electrical and mechanical specifications.
