FN2410-60-34

Overview

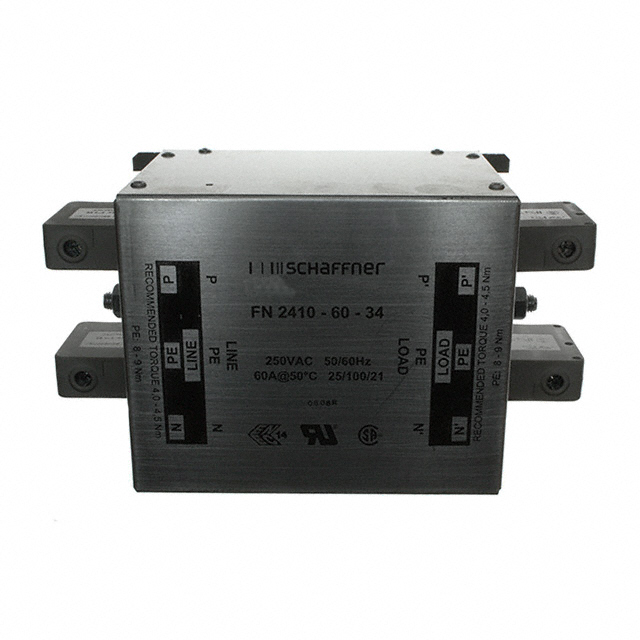

The Schaffner FN2410-60-34 is a single-phase power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 60 A. The device utilizes terminal block termination for both input and output connections. It operates within a frequency range of 0 Hz to 400 Hz and has a maximum leakage current of 1.49 mA at 120 VAC, 60 Hz. The unit supports an operating temperature range from -25°C to +100°C and carries UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Provides robust electromagnetic interference mitigation for industrial automation and climate control systems
• Designed for nominal operation in single-phase AC power lines
• Features durable chassis mount construction with terminal block interfaces

Applications

• Industrial automation equipment
• Climate control systems
• Single-phase power conditioning units

Procurement Notes

Verify the specific part number suffix against official TE Connectivity or Schaffner documentation to ensure correct pinout and termination specifications. Confirm that the required current rating and voltage class match the target application's electrical parameters before procurement. Cross-reference certification requirements such as UL or CSA with local regulatory standards.

Selection Notes

Select this component when a high-current single-phase filter is required for chassis installation. Ensure the system voltage does not exceed 250 VAC and the continuous load remains within the 60 A limit. Verify that the terminal block connection method aligns with the available wiring infrastructure and that the physical dimensions fit the designated enclosure space.

Part Context

This component belongs to the FN2410 series of standard performance single-phase filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is engineered for general-purpose EMI suppression in power distribution networks. The specific model integrates passive filtering elements housed in a protective enclosure suitable for industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material.
