FN2410-8-44

Overview

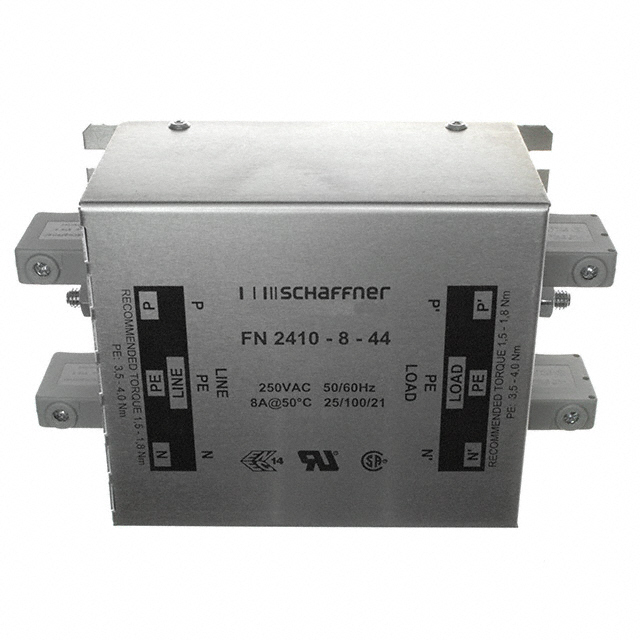

The Schaffner FN2410-8-44 is a single-phase EMC/RFI power line filter designed for chassis mounting. It features terminal block termination and supports a voltage rating of 250 VAC with an 8 A current capacity. The unit operates within a frequency range of 0 Hz to 400 Hz and maintains a leakage current of 2.6 mA. It complies with UL, CSA, and IEC/EN standards, functioning reliably between -25°C and +100°C.

Feature Summary

• Provides single-stage electromagnetic interference suppression for AC power lines
• Utilizes robust chassis mount construction for secure installation
• Employs terminal block connections for straightforward wiring integration

Applications

• Industrial machinery power supply protection
• Medical equipment EMI mitigation
• Test and measurement instrument filtering

Procurement Notes

Verify the specific part number suffix against official TE Connectivity/Schaffner documentation to ensure correct pinout and certification compliance. Confirm that the terminal block type matches your system's wiring requirements. Cross-reference the 8A rating and 250VAC specification with your circuit design parameters before procurement to avoid compatibility issues.

Selection Notes

Select this component when single-phase filtering at 8A is required for chassis-mounted applications. Ensure the operating environment stays within the specified temperature range. Verify that the terminal block interface aligns with existing panel designs. Consider the leakage current specifications if strict safety isolation limits apply to the target equipment.

Part Context

This model belongs to the FN2410 series of single-phase power line filters from Schaffner. The series offers various current ratings including 16A and 80A variants. These filters are engineered for general industrial and commercial use where compact EMI suppression is necessary. The product line emphasizes reliability and compliance with international safety standards.

Replacement Considerations

Check for direct substitutes like the FN2410H-8-44 which shares similar electrical characteristics but may have different housing or certification details. Always validate mechanical dimensions and terminal configurations before swapping components to ensure physical compatibility.
