FN2410-80-34

Overview

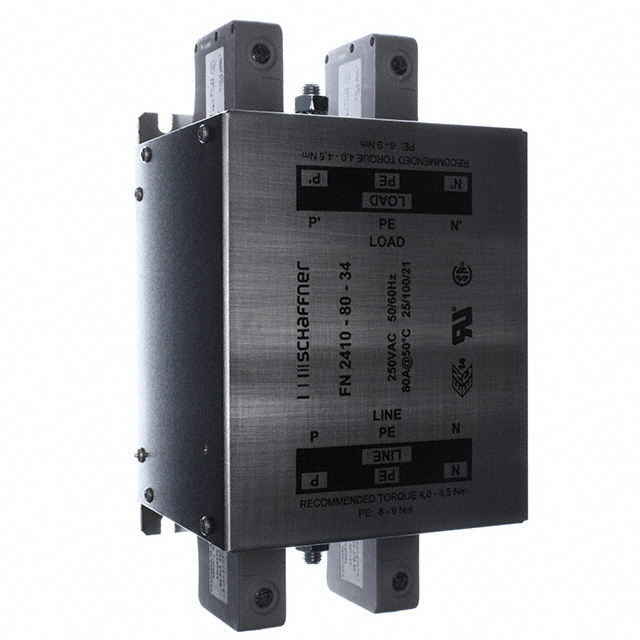

The Schaffner FN2410-80-34 is a single-phase power line filter designed for chassis mounting. It features terminal block input and output connections, supporting a current rating of 80 A at 250 VAC. The unit operates within a frequency range of 0 Hz to 400 Hz and maintains a leakage current of 2.6 mA. Certified by UL, CSA, and IEC/EN standards, it functions reliably between -25°C and +100°C.

Feature Summary

• Provides electromagnetic interference mitigation for single-phase circuits
• Utilizes safety terminal blocks for secure electrical connections
• Engineered for robust chassis mounting applications

Applications

• Industrial automation systems
• Climate control equipment
• General power conditioning infrastructure

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility with your system requirements. Ensure that the chassis mounting style and terminal block termination match your enclosure design. Cross-reference certification marks such as UL and CSA with local regulatory standards before finalizing procurement decisions.

Selection Notes

Select this component when high-current single-phase filtering is required in industrial environments. The 80 A rating suits heavy-duty machinery, while the wide temperature range supports demanding operational conditions. Confirm that the 250 VAC nominal voltage aligns with the target power supply specifications to ensure safe and effective operation.

Part Context

This model belongs to the FN2410 series of single-phase filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by high current handling capabilities and durable construction suitable for rigorous industrial settings. The product line emphasizes reliable noise suppression for sensitive electronic loads connected to main power lines.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Generic cross-references may not preserve critical electrical characteristics or physical dimensions required for proper integration.
