FN2410H-100-34

Overview

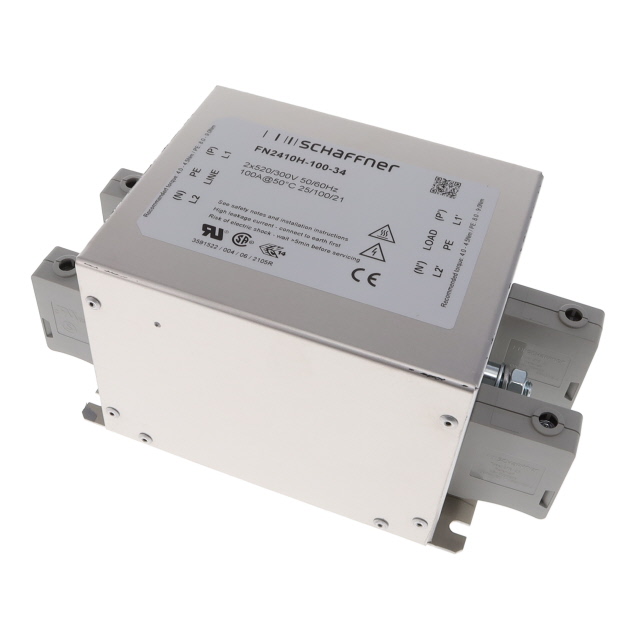

The FN2410H-100-34 is a single-phase power line filter manufactured by TE Connectivity / Schaffner. It features a chassis mount design with terminal block termination for robust industrial connections. The component is rated for 100 A current and 250 VAC voltage, operating within a frequency range of 0 Hz to 400 Hz. Maximum leakage current is specified at 1.49 mA under standard test conditions. The unit supports an operating temperature range from -25°C to +100°C and weighs approximately 2 kg. Compliance certifications include UL, CSA, and IEC/EN standards.

Feature Summary

• Chassis mount construction designed for secure installation in industrial enclosures
• Terminal block termination providing reliable electrical connectivity
• Compliance with major international safety and electromagnetic compatibility standards

Applications

• Industrial machinery power supply filtering
• Medical equipment noise suppression
• Data center power distribution units

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to ensure correct performance characteristics. Confirm that the terminal block configuration matches the intended wiring scheme. Validate compliance requirements such as UL or CSA against the target application regulations before finalizing procurement orders.

Selection Notes

Select this model when high continuous current handling up to 100 A is required for single-phase applications. Ensure the chassis mounting style fits the available enclosure space. Verify that the terminal block interface aligns with existing cable management systems. Consider the thermal environment to ensure operation remains within the specified temperature limits.

Part Context

This component belongs to the FN2410H series of power line filters. The series offers various current ratings to suit different load requirements. The H variant typically denotes specific internal construction or performance enhancements compared to standard models. It serves as a critical component for maintaining power quality in sensitive electronic environments.

Replacement Considerations

The part number alias 801876-SF may be used interchangeably depending on regional manufacturing sources. Cross-reference with other FN2410H variants only if current ratings differ. Do not substitute with non-H series models without verifying terminal and mounting compatibility.
