FN2410H-25-33

Overview

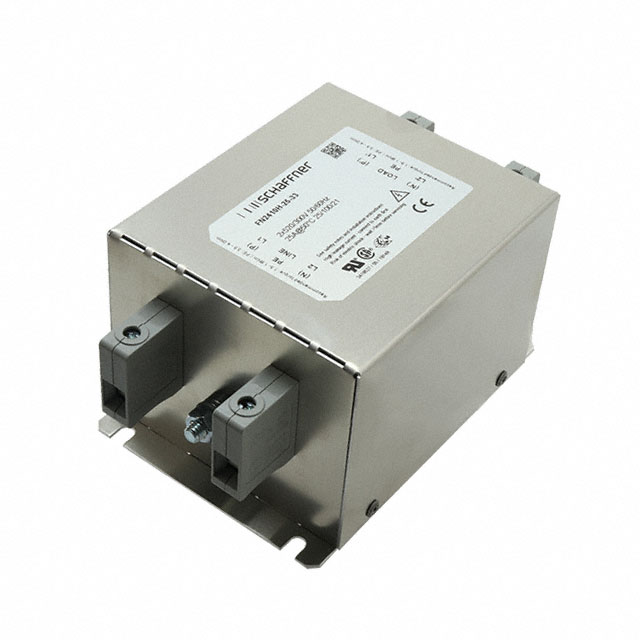

The FN2410H-25-33 is a single-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features a rated voltage of 250 VAC and a current rating of 25 A. Designed for chassis mounting with terminal block termination, the unit operates within a frequency range of 0 Hz to 400 Hz. The leakage current is specified at 2.6 mA, and it supports an operating temperature range from -25 °C to +100 °C. Compliance includes UL, CSA, and IEC/EN standards.

Feature Summary

• Designed for operation on two phases in a three-phase power network
• High voltage terminal block configuration
• Single-stage EMC/EMI filtering architecture

Applications

• Industrial machinery power conditioning
• Three-phase power networks requiring single-phase filtering
• Equipment requiring high voltage terminal connections

Procurement Notes

Verify the specific suffix '33' corresponds to the required terminal block configuration and mounting style. Confirm that the 25 A current rating and 250 VAC voltage align with the system requirements. Ensure compatibility with the 0 Hz to 400 Hz operating frequency range. Check for updated compliance certifications such as UL and CSA before integration.

Selection Notes

Select this model when dual-phase operation within a three-phase system is required. The H-series designation indicates suitability for these specific network configurations. Compare against standard FN2410 models if single-phase only application is sufficient. Verify chassis mounting space availability for the physical dimensions associated with the terminal block interface.

Part Context

This component belongs to the FN2410 series of single-phase power line filters. The 'H' variant distinguishes it from standard versions by enabling operation across two phases in three-phase networks. It shares the core filtering technology of the series but adapts the internal configuration for specific multi-phase applications while maintaining chassis mountability.

Replacement Considerations

FN2410H-32-33 offers a higher current rating of 32 A. FN2410-25-33 is the non-H version for standard single-phase use. FN2412H-25-33 provides alternative form factor options.
