FN2410H-60-34

Overview

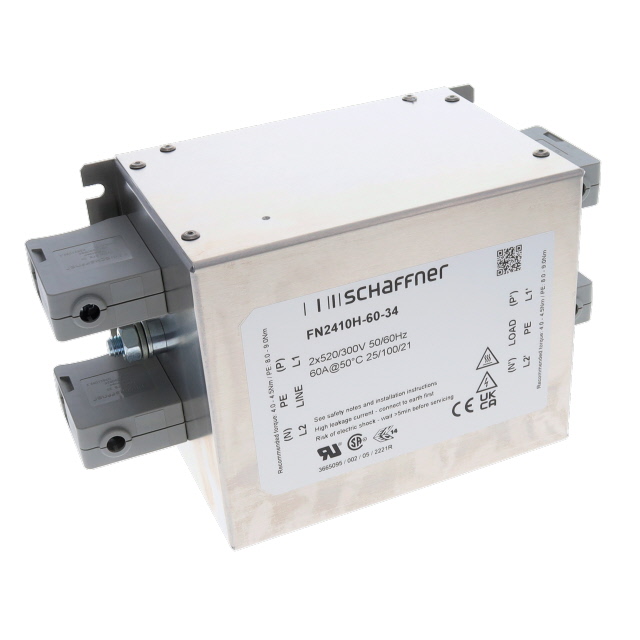

The FN2410H-60-34 is a single-phase power line filter manufactured by Schaffner EMC Inc. It features a 60 A current rating and operates within a frequency range of 0 Hz to 400 Hz. The unit supports a voltage rating of 520 VAC with a maximum leakage current of 2.6 mA. Designed for chassis mounting, it utilizes terminal block connections for both input and output. The component complies with UL, CSA, and IEC/EN standards and functions reliably between -25 °C and +100 °C.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Utilizes terminal block interfaces for secure electrical connections
• Engineered for direct chassis mounting applications

Applications

• Industrial machinery power conditioning
• Medical equipment noise reduction
• Telecommunications infrastructure filtering

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the terminal block configuration matches existing wiring setups. Check compliance certifications such as UL and IEC/EN against regional regulatory needs. Validate thermal operating limits relative to the installation environment to prevent performance degradation under load.

Selection Notes

Select this model when a 60 A capacity is required for single-phase systems. Ensure the chassis mount style fits the enclosure design constraints. Verify that the 520 VAC rating exceeds the peak system voltage. Consider the terminal block termination method if screw-down connections are preferred over other fastening types for maintenance accessibility.

Part Context

This component belongs to the FN2410 series of standard performance filters. It shares the same physical footprint and mounting style as variants like the FN2410-60-34 but offers enhanced high-frequency attenuation characteristics typical of the H-series designation. The product line focuses on robust EMI suppression for demanding industrial environments.

Replacement Considerations

The FN2410-60-34 serves as a functional substitute within the same series. Both models share identical current ratings, voltage specifications, and mechanical dimensions. Verify that the specific attenuation curves meet the application's noise profile requirements before swapping.
