FN2410H-80-34

Overview

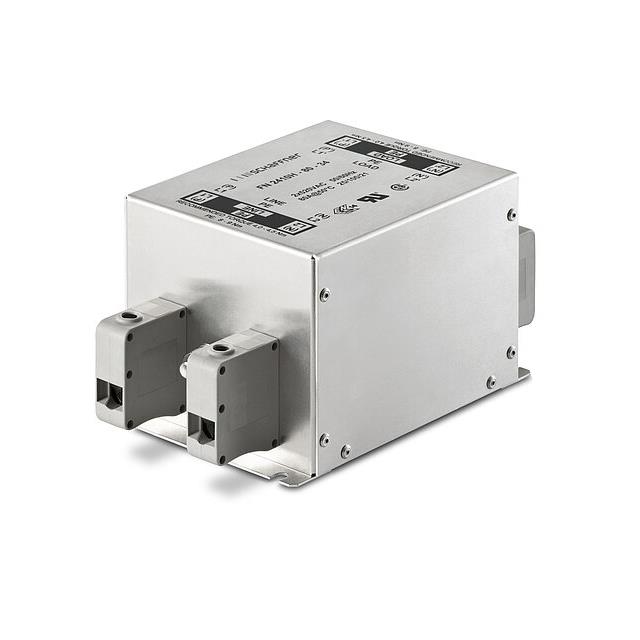

The FN2410H-80-34 is a single-phase EMC/RFI power line filter manufactured by TE Connectivity / Schaffner. It features an 80 A current rating and supports voltage ratings of 520 VAC and 300 VAC. The device operates within a frequency range of 0 Hz to 400 Hz and has a maximum leakage current of 2.6 mA. Designed for chassis mounting, it utilizes terminal block termination. The unit weighs 1.8 kg and functions within a temperature range of -25 °C to +100 °C. It holds UL, CSA, and IEC/EN compliance certifications.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Supports operation across a wide frequency spectrum up to 400 Hz
• Engineered for secure chassis mounting with terminal block connections

Applications

• Industrial machinery power conditioning
• Medical equipment power supply filtering
• Telecommunications infrastructure protection

Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required voltage and current parameters. Confirm that the terminal block type matches the installation environment. Check for updated compliance documentation such as RoHS status before finalizing procurement orders to meet regulatory standards.

Selection Notes

Select this component when high current handling capacity is required for single-phase applications. Ensure the operating frequency range covers the system's harmonic content. Verify that the chassis mounting style fits the enclosure design constraints. Consider the thermal management requirements given the maximum operating temperature limit.

Part Context

This model belongs to the FN2410 series of power line filters from Schaffner. The series is designed for robust noise suppression in demanding environments. The H variant typically indicates specific performance characteristics within the lineup. It serves as a critical component for maintaining power quality in sensitive electronic systems.

Replacement Considerations

Consult the manufacturer's cross-reference guide for verified substitutes. Ensure any replacement maintains identical current and voltage ratings. Verify mechanical dimensions and terminal block compatibility for direct interchangeability.
