FN2412-16-44

Overview

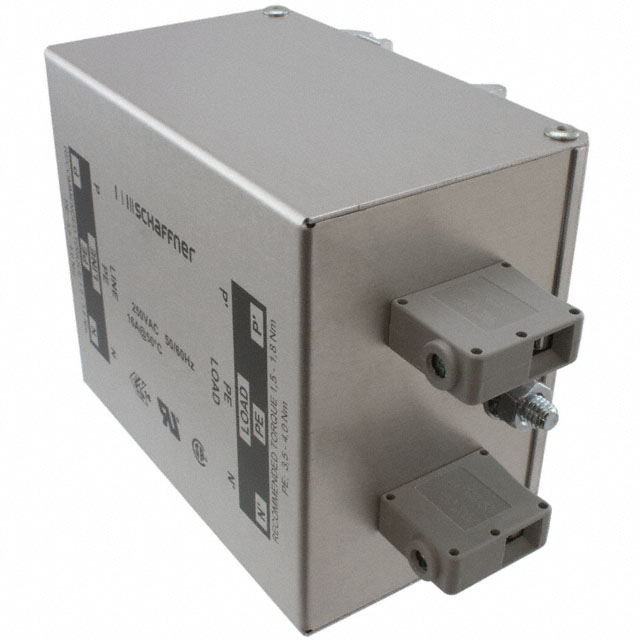

The Schaffner FN2412-16-44 is a single-phase EMC/RFI power line filter designed for DIN rail mounting. It features terminal block input and output connections. The component has a voltage rating of 250 VAC and a current rating of 16 A. It operates within a frequency range of 0 Hz to 400 Hz. The unit complies with UL, CSA, and IEC/EN standards.

Feature Summary

• Provides exceptional conducted attenuation performance for noise suppression
• Designed for traditional chassis or DIN rail installation environments
• Utilizes terminal block interfaces for secure electrical connections

Applications

• Industrial machinery power conditioning
• Medical equipment EMI suppression
• General electronic device protection

Procurement Notes

Verify the specific datasheet version and compliance certificates (UL, CSA, IEC/EN) prior to procurement. Confirm that the terminal block configuration matches the system wiring requirements. Ensure the operating temperature range aligns with the intended environmental conditions. Cross-reference the manufacturer part number to avoid confusion with similar series components.

Selection Notes

Select this model when a single-stage solution is required for 16 A applications. Ensure the system voltage does not exceed 250 VAC. Verify that the 0 Hz to 400 Hz operational frequency covers the application needs. Consider the DIN rail mounting style if space constraints preclude other mounting methods.

Part Context

This component belongs to the Schaffner FN2412 series of single-phase filters. It is manufactured by TE Connectivity / Schaffner. The series is known for standard performance in EMC/RFI filtering applications. It serves as a dedicated power line filter for reducing electromagnetic interference in AC power circuits.

Replacement Considerations

The FN2412H-8-44 is a related variant within the same product family. Note that the H-series may have different current ratings or physical dimensions. Verify compatibility before substitution.
