FN2412H-25-33

Overview

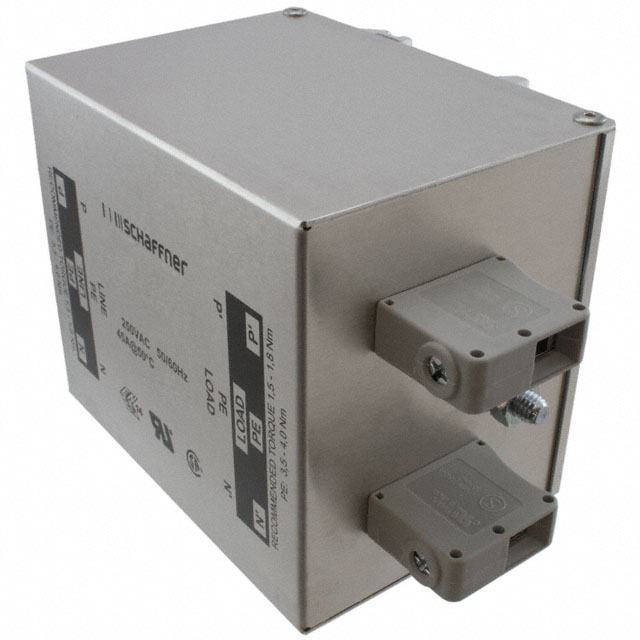

The FN2412H-25-33 is a single-phase power line filter manufactured by Schaffner EMC Inc. It features a DIN rail mounting style and terminal block termination. The component has a voltage rating of 250 VAC and a current rating of 25 A. It operates within a frequency range of 0 Hz to 400 Hz. The maximum leakage current is specified as 2.6 mA. The unit complies with UL, CSA, and IEC/EN standards. The operating temperature range extends from -25 °C to +100 °C.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Designed for secure DIN rail installation in industrial enclosures
• Utilizes terminal block connections for reliable electrical interfacing

Applications

• Industrial machinery power conditioning
• Electrical control cabinet EMC filtering
• Power supply input protection for sensitive electronics

Procurement Notes

Verify the exact part number against official manufacturer documentation to confirm specifications. Ensure compatibility with existing DIN rail systems and terminal block wiring configurations. Check for updated compliance certifications required by local regulations before procurement.

Selection Notes

Select this model when single-phase filtering at 25 A is required for DIN rail integration. Confirm that the 250 VAC rating matches the system voltage. Verify that the 0 Hz to 400 Hz operational frequency covers the application requirements.

Part Context

This component belongs to the FN2412 series of power line filters from Schaffner. The series is designed for general-purpose EMC applications in industrial environments. The specific suffix indicates the current rating and terminal configuration.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
