FN2415B-10-29

Overview

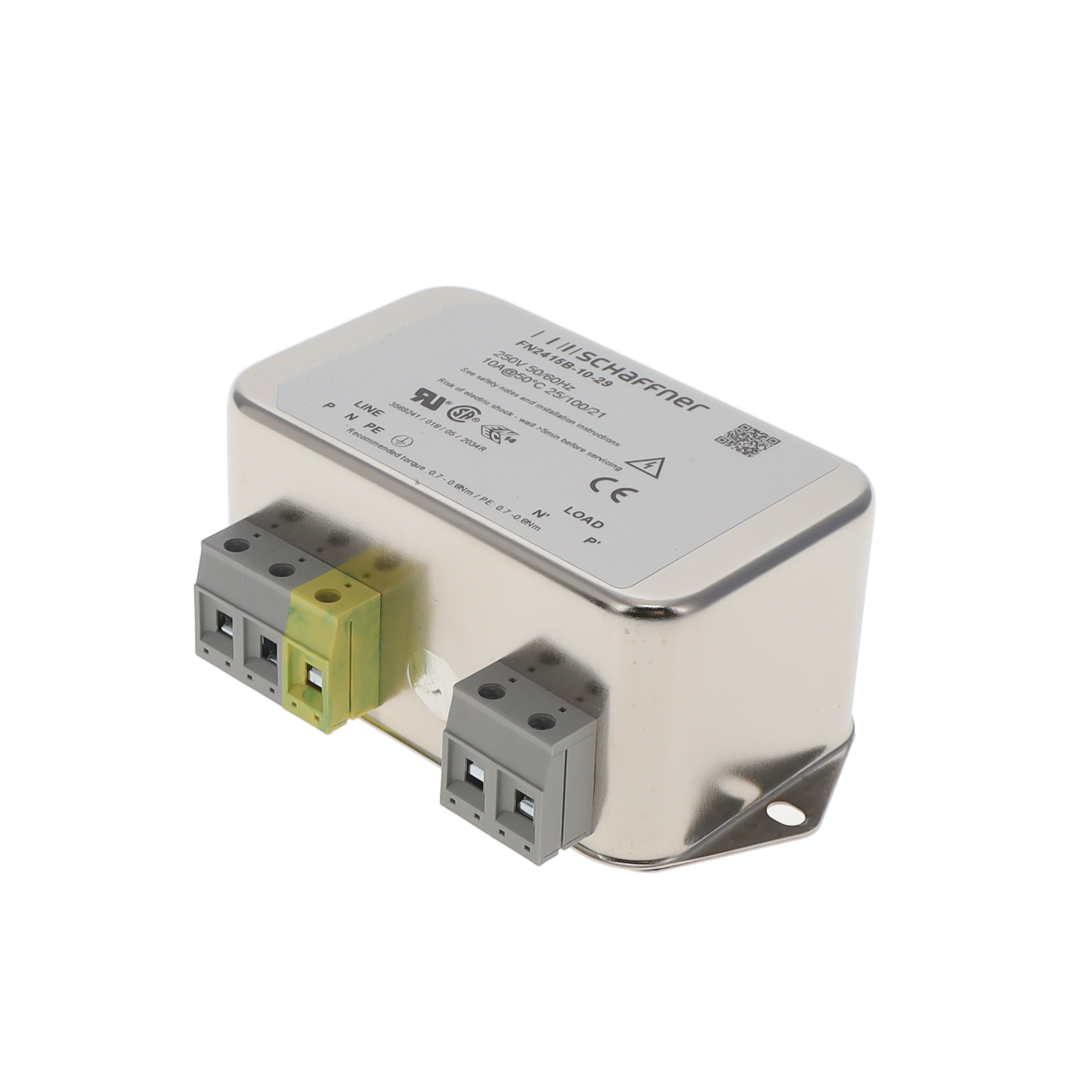

The Schaffner FN2415B-10-29 is a single-phase, two-stage power line filter designed for chassis mounting. It features a rated current of 10 A and a voltage rating of 250 VAC. The unit incorporates an inductance of 4.2 mH and utilizes terminal block connections for secure installation. Designed for operation within a temperature range of -25°C to +100°C, this component provides EMC filtering capabilities with zero leakage current characteristics.

Feature Summary

• Single-stage EMC filtering configuration
• Chassis mount mechanical design
• Terminal block termination style

Applications

• Control equipment interference reduction
• System stability improvement
• Internal interference propagation mitigation

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact electrical parameters and physical dimensions. Ensure compatibility with existing chassis mounting holes and terminal block spacing before integration. Cross-reference certification requirements such as CSA or ENEC with target market regulations to ensure compliance.

Selection Notes

Select this model when zero leakage current is required for safety-sensitive applications. Confirm that the 10 A current rating and 4.2 mH inductance meet the specific noise suppression needs of the target circuit. Verify that the chassis mount form factor fits the available enclosure space and thermal management constraints.

Part Context

This component belongs to the FN 2415 series of power line filters manufactured by TE Connectivity / Schaffner. The series is characterized by single-phase configurations suitable for various industrial and commercial electronic equipment requiring robust electromagnetic compatibility solutions.

Replacement Considerations

FN2415L-10-29
