Product Detailed Parameters
- Description：LINE FILTER 250VAC 16A CHASS MNT
- Series：FN 2415
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：16 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

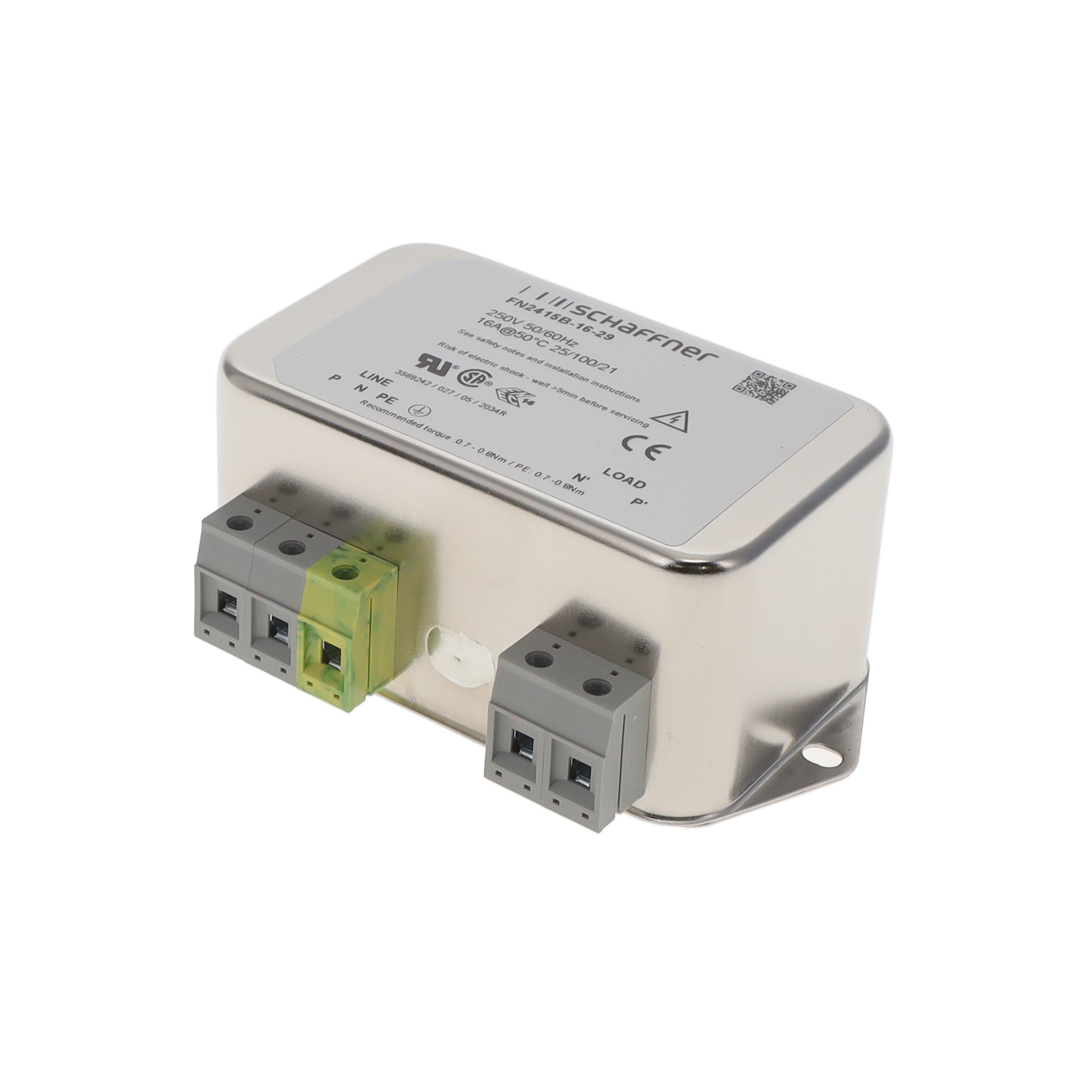

The Schaffner FN2415B-16-29 is a single-phase EMI/EMC power line filter designed for complex equipment control lines. It features a 16 A current rating and operates at 250 VAC within a frequency range of DC to 400 Hz. The unit utilizes a two-stage filtering configuration with terminal block connections and chassis mount installation. Key electrical parameters include an inductance of 3 mH and a leakage current of 0 mA. It complies with UL, CSA, and IEC/EN standards and functions between -25°C and +100°C.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Zero leakage current design for safety compliance
- Terminal block termination for secure wiring
- Chassis mounting style for industrial integration
Applications
- Control lines of complex machinery
- Industrial equipment EMC protection
- Power conditioning systems
Procurement Notes
Verify the specific suffix '29' against official datasheets to confirm terminal block type and mounting hardware specifications. Ensure the 16 A rating aligns with system load requirements. Confirm that the 0 mA leakage current meets strict safety isolation needs. Cross-reference certification marks (UL, CSA, IEC/EN) with regional regulatory mandates before finalizing procurement.
Selection Notes
Select this component when zero leakage current is critical for personnel or equipment safety. The 16 A rating suits high-power industrial loads. Verify that the 3 mH inductance provides adequate attenuation for the specific noise spectrum. Ensure chassis mounting space accommodates the physical dimensions and thermal dissipation requirements up to +100°C operating temperature.
Part Context
This model belongs to the FN 2415 series of single-phase EMC filters by TE Connectivity / Schaffner. The series targets control lines in complex equipment, offering robust EMI/EMC performance. The 'B' variant typically denotes specific internal construction or terminal configurations within the standard FN2415 family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer cross-reference guides for verified alternatives.
