FN2415B-6-29

Overview

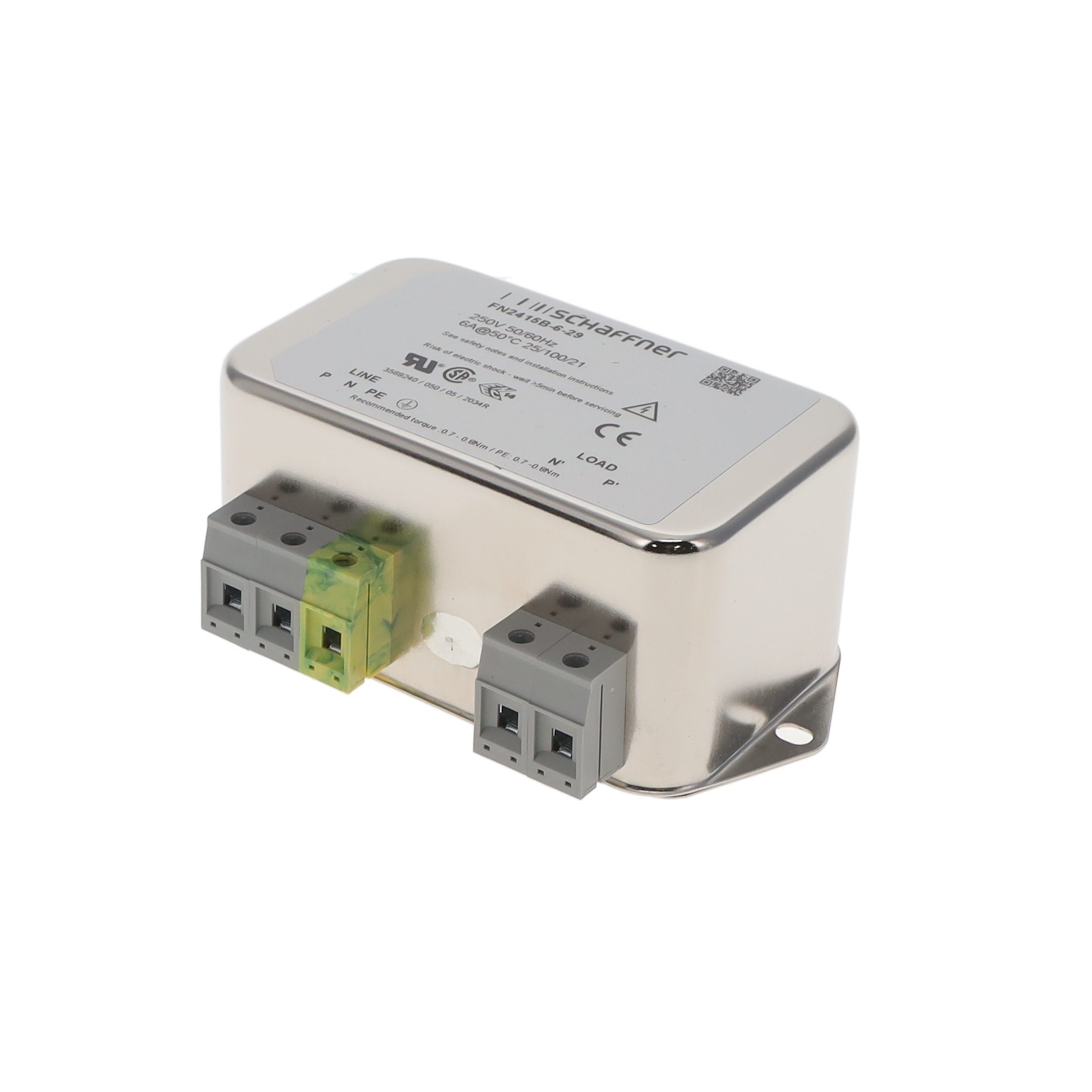

The Schaffner FN2415B-6-29 is a single-stage, single-phase power line filter designed for chassis mounting. It features a rated current of 6 A and a voltage rating of 250 VAC. The unit utilizes terminal block termination for electrical connections. Key physical dimensions include a length of 113.5 mm, width of 58 mm, and height of 45.6 mm. The component operates within a temperature range of -25°C to +100°C and weighs approximately 400 g.

Feature Summary

• Single-stage EMI/EMC filtering configuration for single-phase applications
• Chassis mount installation style with terminal block termination
• Designed for operation in environments ranging from -25°C to +100°C

Applications

• Industrial equipment requiring single-phase power line filtering
• Medical devices needing compliant EMI suppression
• Information technology hardware infrastructure

Procurement Notes

Verify the specific suffix designation against the manufacturer's official documentation to confirm exact termination type and certification status. Confirm that the chassis mounting footprint aligns with the enclosure design constraints. Ensure the operating temperature range meets the environmental requirements of the final assembly. Cross-reference the part number with the latest datasheet to validate any recent manufacturing changes or obsolescence notices.

Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels. The 6 A current rating suits moderate power applications. Consider the chassis mount form factor if panel integration is preferred over PCB mounting. Verify that the terminal block interface matches the available wiring harnesses. Evaluate the physical dimensions against the available space in the equipment enclosure.

Part Context

This component belongs to the FN 2415 series of power line filters manufactured by TE Connectivity / Schaffner. The series provides EMC solutions for single-phase AC lines. The FN2415B variant specifically denotes the chassis mount configuration with terminal blocks, distinguishing it from other mounting styles within the broader product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult the manufacturer's official replacement guide for verified alternatives.
