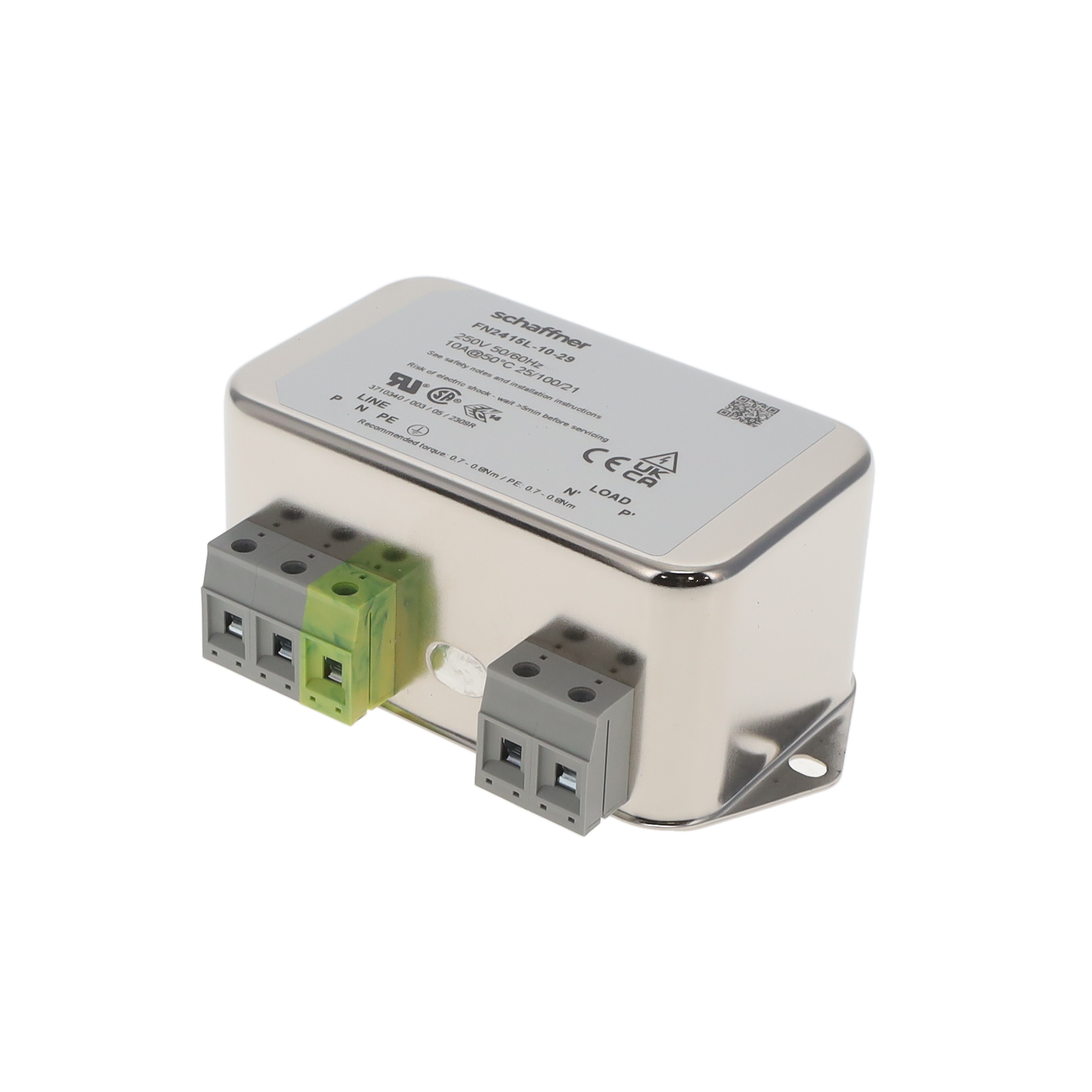

FN2415L-10-29

Overview

The Schaffner FN2415L-10-29 is a single-phase power line filter designed for electromagnetic compatibility (EMC) applications. It features a rated current of 10 A and an inductance value of 4.2 mH. The device operates at a voltage rating of 250 VAC and exhibits a leakage current of 2.59 mA. This component utilizes terminal block connections for secure electrical interfacing and supports chassis mounting configurations. It is engineered to function within an operating temperature range spanning from -25°C to +100°C, ensuring reliable performance across diverse industrial environments.

Feature Summary

• Provides effective attenuation of electromagnetic interference through integrated inductive filtering components
• Ensures safety compliance with recognized international certification standards
• Facilitates robust mechanical integration via dedicated chassis mounting capabilities

Applications

• Industrial machinery control systems requiring EMI suppression
• Medical equipment power inputs adhering to strict leakage current limits
• Information technology infrastructure power distribution units

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm exact leakage current specifications and terminal configuration. Ensure that the selected variant matches the required thermal management parameters for the intended installation environment. Cross-reference the datasheet for precise dimensional tolerances to guarantee proper fit within the designated enclosure space.

Selection Notes

Evaluate the total system leakage current budget to ensure the 2.59 mA specification remains within acceptable safety thresholds for sensitive medical or precision instrumentation applications. Confirm that the 10 A continuous current rating aligns with the maximum load requirements while accounting for potential ambient temperature derating factors specified in the technical literature.

Part Context

This component belongs to the FN 2415 series of single-stage power line filters manufactured by TE Connectivity under the Schaffner brand. The series is characterized by its compact form factor and high-performance filtering capabilities tailored for demanding EMC requirements in global markets.

Replacement Considerations

FN2415B-10-29
