FN2415L-16-29

Overview

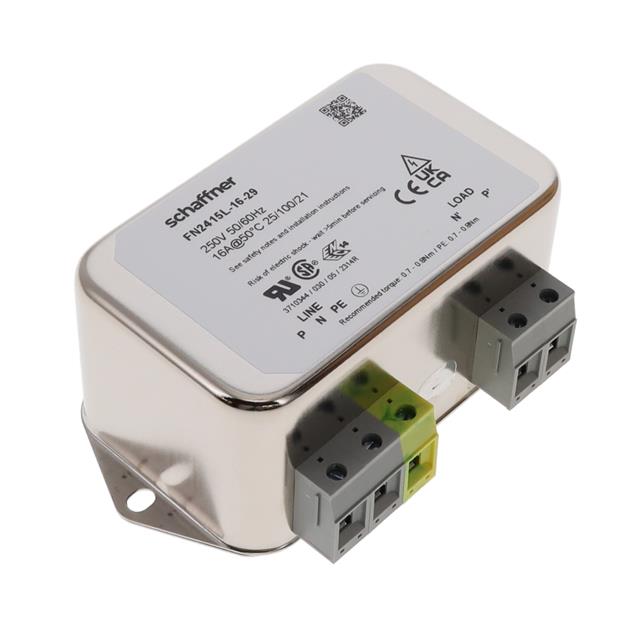

The Schaffner FN2415L-16-29 is a single-phase EMI/EMC power line filter designed for chassis mounting. It features a rated current of 16 A and a voltage rating of 250 VAC, operating within a frequency range of DC to 400 Hz. The unit utilizes terminal block termination and exhibits a leakage current of 2.59 mA. Certified by UL, CSA, and IEC/EN standards, it supports an operating temperature range from -25 °C to +100 °C.

Feature Summary

• Provides two-stage filtering for effective electromagnetic interference suppression in control equipment applications.
• Designed for direct DIN rail installation using the FN 2412 series mounting system for rapid integration.

Applications

• Industrial control systems requiring EMC compliance
• Medical equipment power supplies
• Information technology hardware

Procurement Notes

Verify that the specific part number matches the required current rating and termination style. Confirm regulatory certifications such as UL and CSA are valid for the target market. Ensure the chassis mounting or DIN rail adapter requirements align with the enclosure design specifications before finalizing the order.

Selection Notes

Select this component when a single-phase filter with a 16 A capacity is required for frequencies up to 400 Hz. Consider the low leakage current specification for sensitive medical or IT applications. Verify that the terminal block connection method suits the existing wiring infrastructure and that the thermal rating accommodates the ambient environment.

Part Context

This model belongs to the FN 2415 series, which offers high-performance EMC filtering solutions. The series is characterized by its ability to meet stringent emission standards while maintaining compact dimensions suitable for panel and control cabinet designs. It represents a standard solution for general-purpose industrial noise suppression.

Replacement Considerations

The part number alias 806161-SF indicates a potential cross-reference or alternate designation. Verify electrical compatibility and physical footprint before substituting with other single-phase filters in the same current class.
