- Description：LINE FILTER 250VAC 6A CHASS MNT
- Series：FN 2415
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CE, CSA, ENEC, UKCA, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

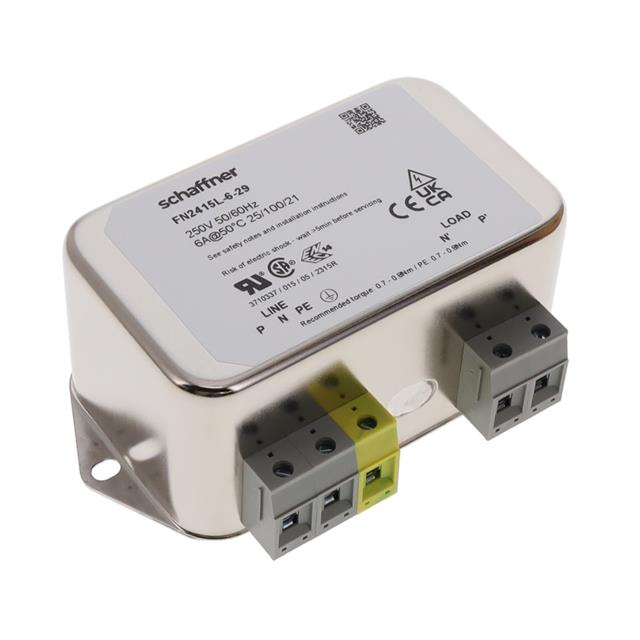

The Schaffner FN2415L-6-29 is a single-phase EMI/EMC power line filter designed for chassis mounting. It features a rated current of 6 A and a voltage rating of 250 VAC, operating within a frequency range of 0 Hz to 60 Hz. The unit utilizes terminal block termination and exhibits a leakage current of 2.59 mA. Certified by UL, CSA, and IEC/EN standards, it supports an operating temperature range from -25°C to +100°C.
Feature Summary
- Provides effective electromagnetic interference suppression for sensitive electronic equipment
- Designed for secure chassis mounting with terminal block connections
- Complies with international safety and EMC certification requirements
Applications
- Motor drives
- Power supplies
- Single-phase control equipment
Procurement Notes
Verify the specific suffix 'L' against official datasheets to confirm internal component variations or manufacturing revisions. Ensure the terminal block configuration matches the system wiring requirements. Confirm that the 2.59 mA leakage current is acceptable for the specific application's safety grounding constraints before finalizing procurement.
Selection Notes
Select this model when a compact single-phase filter is required for applications demanding low leakage current. The 6 A rating suits moderate power loads, while the chassis mount style facilitates integration into industrial enclosures. Verify that the operating temperature range meets the environmental conditions of the installation site.
Part Context
This component belongs to the FN 2415 series of power line filters manufactured by TE Connectivity / Schaffner. The series is engineered for general-purpose single-phase applications, offering reliable noise attenuation in environments where electromagnetic compatibility is critical for equipment operation and regulatory compliance.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for cross-reference data.
