FN2500-10-05-C13

$26.16

Description：LINE FLTR 400VDC 277VAC 10A CHAS
Series：FN2500
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:6f701c3450e9 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 400VDC 277VAC 10A CHAS
Series：FN2500
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：400V
Voltage - Rated AC：277V
Current：10:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Post
Inductance：8.3mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2500-10-05-C13

Overview

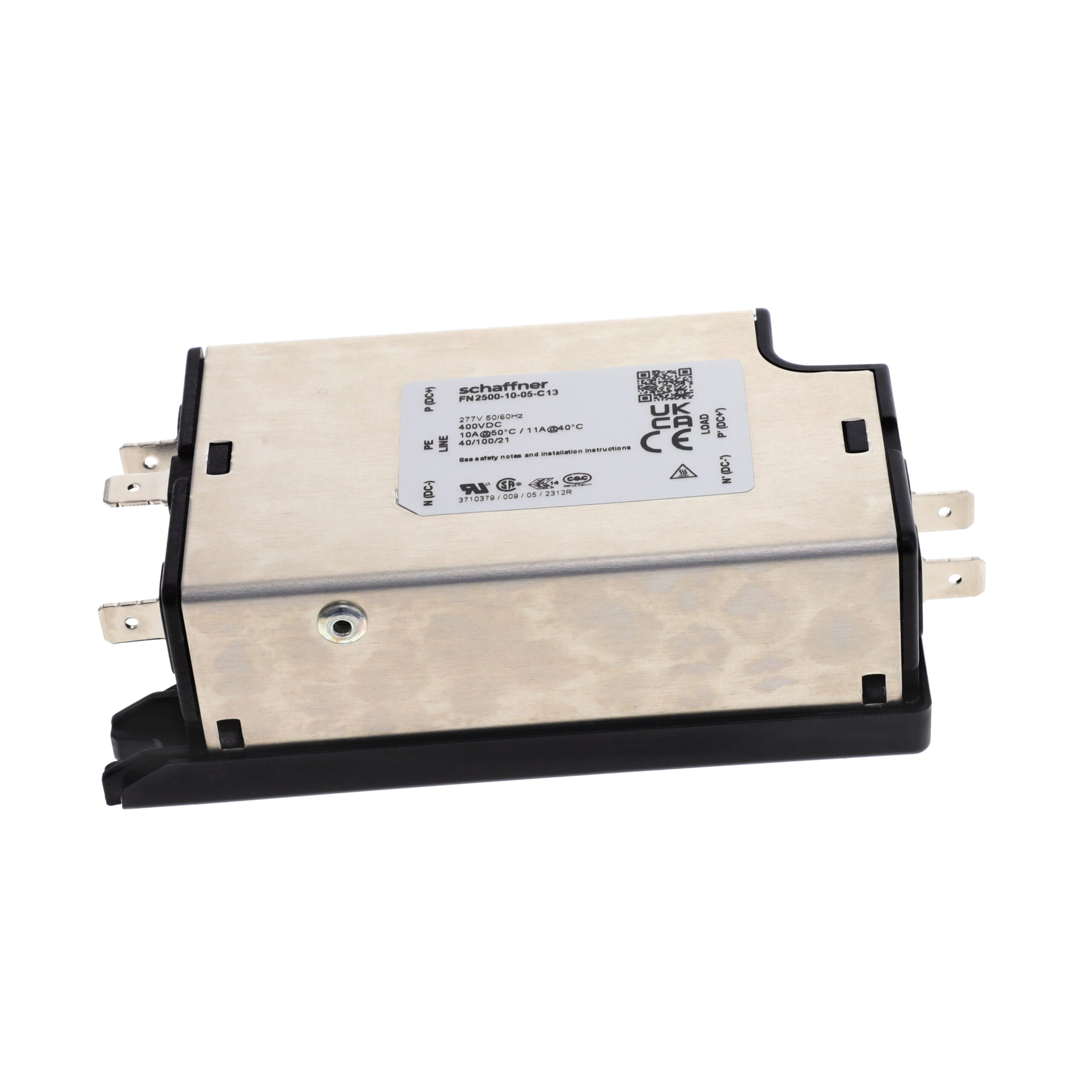

The Schaffner FN2500-10-05-C13 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a low-profile configuration with a current rating of 10 A and operates at voltages up to 277 VAC and 400 V DC. The unit utilizes a single-stage topology with FASTON terminal connections, supporting frequencies from DC to 60 Hz. Certified by CSA, ENEC, and UR, it ensures compliance with international safety standards.

Feature Summary

Low-profile chassis mount design for space-constrained applications
Single-stage filtering topology for efficient noise suppression
FASTON terminal style for rapid and secure electrical connections

Applications

Robotics systems requiring compact EMC solutions
Data center infrastructure equipment
General industrial machinery control panels

Procurement Notes

Verify the specific termination type and voltage ratings against your system requirements before ordering. Confirm that the chassis mounting dimensions align with your enclosure design. Ensure compatibility with the operating frequency range of DC to 60 Hz. Check for any recent packaging changes or RoHS compliance updates in the latest datasheet revision.

Selection Notes

Select this model when a single-phase filter with a 10 A rating is required for 277 VAC systems. The low-profile form factor makes it suitable for dense panel layouts. Consider the FASTON terminals if quick connection is preferred over screw terminals. Verify that the single-stage performance meets your specific EMI attenuation needs.

Part Context

This component belongs to the Schaffner FN2500 series, which offers high-performance EMC filters for various industrial applications. The series is known for its robust construction and wide range of current and voltage options. The FN2500-10-05-C13 specifically addresses the need for compact, reliable filtering in modern electronic equipment.
