FN2500-10-07-C13

Overview

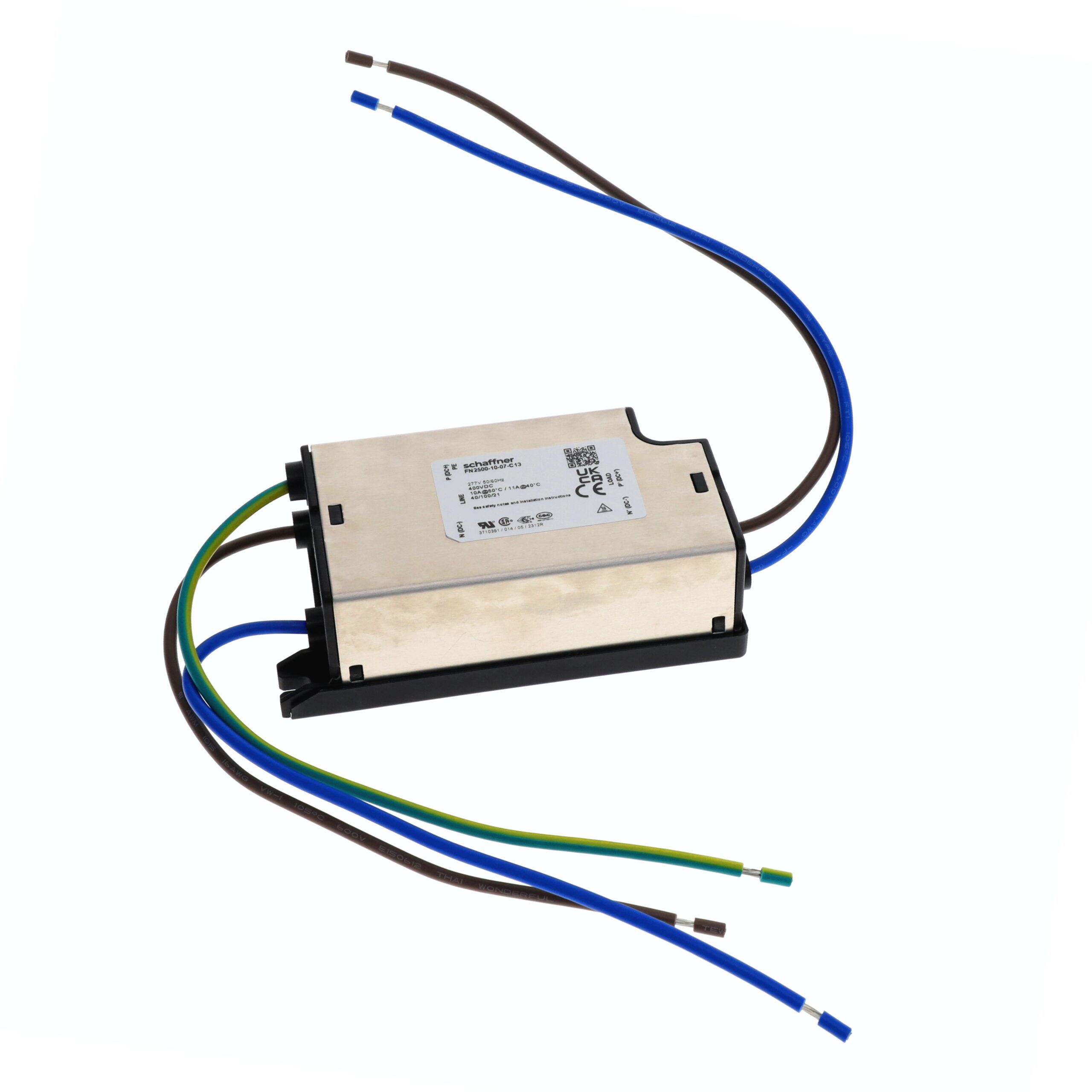

The Schaffner FN2500-10-07-C13 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a rated current of 10 A and operates at voltages up to 277 VAC or 400 VDC. The unit utilizes wire termination and provides high attenuation performance within the frequency range of DC to 60 Hz. This low-profile component is suitable for applications requiring compact filtering solutions.

Feature Summary

• Low-profile design optimized for space-constrained environments
• High attenuation performance for effective noise suppression
• Versatile voltage rating supporting AC and DC systems

Applications

• Robotics systems
• Data center infrastructure
• General-purpose electronic equipment

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct terminal type and certification compliance. Confirm that the chassis mounting style and wire termination specifications align with your assembly requirements before finalizing procurement.

Selection Notes

Select this model when a compact, single-phase filter is required for 10 A circuits. Ensure the operating environment supports the specified voltage ratings and that chassis mounting is feasible. Verify compatibility with downstream wiring methods due to the wire termination configuration.

Part Context

This component belongs to the FN2500 series, which offers low-profile, high-performance EMC filtering. The series is engineered for demanding applications such as robotics and data centers, providing reliable noise reduction in a compact form factor suitable for modern electronic assemblies.

Replacement Considerations

Consult the official Schaffner cross-reference guide for verified substitutes. Ensure any replacement maintains identical current ratings, voltage limits, and physical dimensions to preserve system integrity.
