Product Detailed Parameters
- Description：LINE FLTR 400VDC 277VAC 15A CHAS
- Series：FN2500
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：400V
- Voltage - Rated AC：277V
- Current：15 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

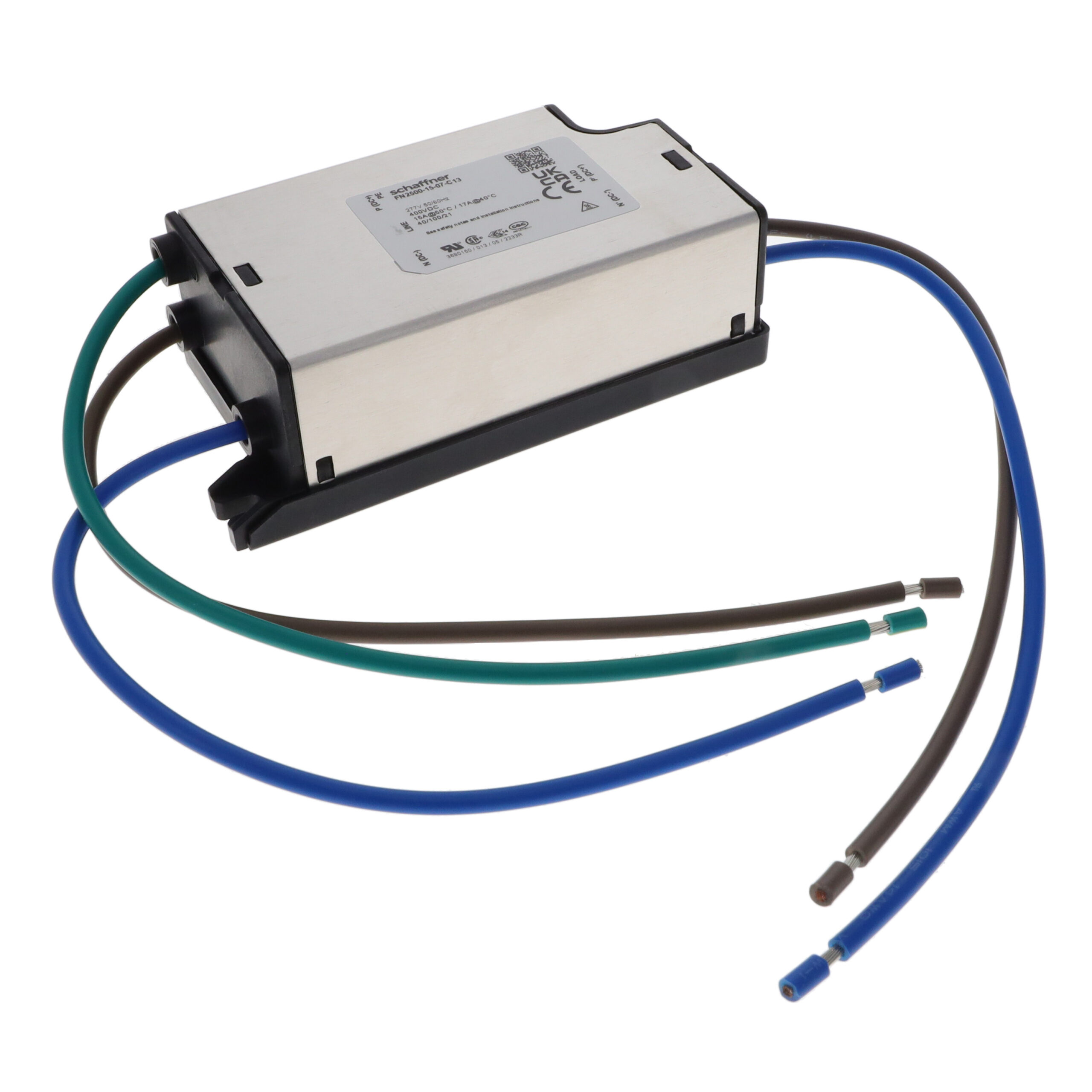

The Schaffner FN2500-15-07-C13 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features wire lead termination and supports a current rating of 15 A. The device operates at AC voltages up to 277 VAC and DC voltages up to 400 VDC, with a frequency range extending from DC to 60 Hz. This component belongs to the FN2500 series, which is characterized by low profile construction and high performance filtering capabilities.
Feature Summary
- Low profile design suitable for space-constrained installations
- High attenuation performance for effective noise suppression
- Chassis mount configuration with wire leads for flexible integration
Applications
- Robotics systems requiring compact EMI filtering
- Data center power distribution units
- General industrial equipment needing single-phase noise reduction
Procurement Notes
Verify that the specific part number FN2500-15-07-C13 matches your voltage and current requirements. Confirm terminal type compatibility with existing wiring harnesses. Check for updated safety certifications such as UL or CQC if required by local regulations. Ensure chassis mounting dimensions align with your enclosure design before ordering.
Selection Notes
Select this model when a low-profile single-stage filter is needed for 15 A applications. Compare against the FN2500-20-08-C13 if higher current capacity or screw terminals are preferred. Consider the FN2070B series if faster connection methods like quick-connects are necessary instead of wire leads.
Part Context
This component is part of the broader FN2500 series from TE Connectivity Schaffner. The series focuses on providing cost-effective, high-performance solutions for general-purpose filtering in modern electronic devices. It complements other Schaffner offerings like the FN2000 and FN9280 series for diverse EMC needs.
Replacement Considerations
The FN2500-20-08-C13 serves as a higher-current alternative within the same series. For different termination styles, consider the FN2070B-6-06 for quick-connect options. Always verify electrical ratings and physical dimensions before substituting.
