FN2500-15-08-C13

Overview

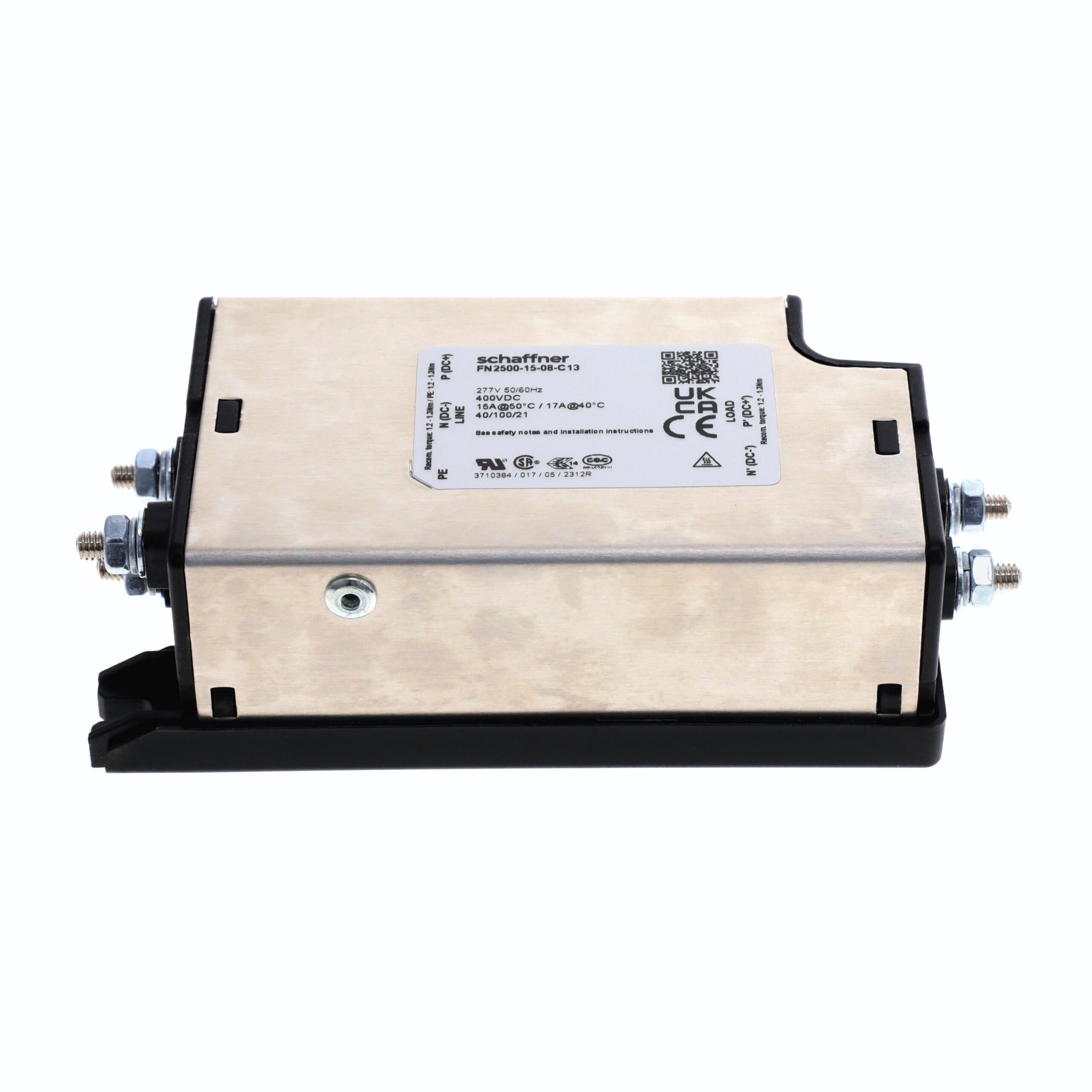

The Schaffner FN2500-15-08-C13 is a single-phase EMC/EMI power line filter from the FN2500 series. It features a rated current of 15 A and a voltage rating of 277 VAC. The unit includes an integrated Y-capacitor with a capacitance value of 10 nF. Designed for rack mount installation, it utilizes screw terminals for electrical connections. The filter operates within a frequency range of 0 Hz to 60 Hz and complies with RoHS standards.

Feature Summary

• Single-phase EMI/EMC filtering configuration
• Integrated Y-capacitor for noise suppression
• Rack mount mechanical design
• Screw terminal connection style

Applications

• Robotics systems
• Data center infrastructure
• General industrial equipment

Procurement Notes

Verify the specific part number FN2500-15-08-C13 against official TE Connectivity/Schaffner documentation to confirm ratings. Ensure compatibility with 277 VAC systems and 15 A load requirements. Confirm rack mount mounting hardware availability and screw terminal specifications match the installation environment.

Selection Notes

Select this component for applications requiring single-phase filtering in robotics or data centers. Verify that the 15 A current rating and 277 VAC voltage rating align with system specifications. Consider the rack mount form factor and screw terminal type for integration into existing chassis designs.

Part Context

This component belongs to the Schaffner FN2500 series, which provides low-profile high-performance EMC filters. The series is designed for demanding environments such as robotics and data centers. The FN2500-15-08-C13 variant specifically offers 15 A capacity with integrated capacitive filtering.

Replacement Considerations

Consult official manufacturer substitution guides for verified equivalents. Cross-reference technical specifications including current, voltage, and mounting style before considering alternative part numbers.
