FN2500-15-103-C13

$37.78

Description：LINE FLTR 400VDC 277VAC 15A CHAS
Series：FN2500
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:284aee322f54 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 400VDC 277VAC 15A CHAS
Series：FN2500
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：400V
Voltage - Rated AC：277V
Current：15 A
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：4mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2500-15-103-C13

Overview

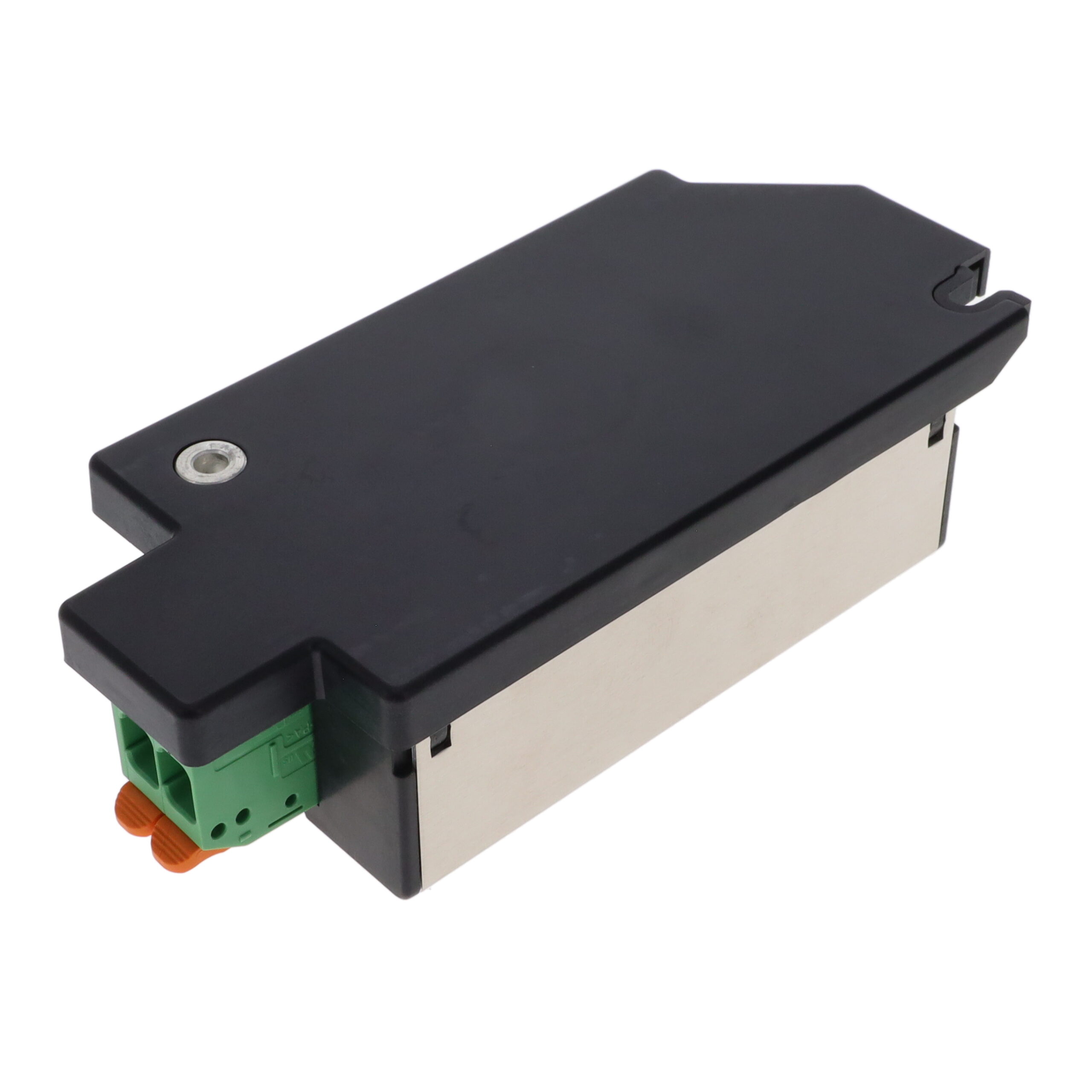

The FN2500-15-103-C13 is a single-phase power line filter from the Schaffner FN2500 series, designed for chassis/rack mounting. It features a 15 A current rating and a 277 VAC voltage rating. The unit utilizes screw terminals for connection and includes an integrated Y-capacitor of 10 nF. With a leakage current of 870 µA, it operates within a frequency range of 0 Hz to 60 Hz. This low-profile EMC filter is engineered for high performance in demanding environments.

Feature Summary

Single-phase EMI/EMC filtering architecture
Low-profile design optimized for space-constrained installations
Chassis or rack mountable construction
Screw terminal connectivity

Applications

Robotics systems
Data center infrastructure
Industrial machinery control panels

Procurement Notes

Verify the specific part number FN2500-15-103-C13 against official TE Connectivity/Schaffner documentation to confirm ratings. Ensure compatibility with 277 VAC systems and 15 A load requirements. Check for RoHS compliance status as specified in the latest datasheet. Confirm physical dimensions for rack/chassis integration before procurement.

Selection Notes

Select this model for applications requiring single-phase filtering with a 15 A capacity. The 10 nF capacitance and 870 µA leakage current define its electrical characteristics. Consider the low-profile form factor if vertical space is limited. Verify that the screw terminal interface matches existing wiring harnesses and panel cutouts.

Part Context

This component belongs to the FN2500 series by TE Connectivity/Schaffner, known for low-profile, high-performance EMC filters. The series targets robotics and data centers. The '15' indicates the 15 Ampere rating, while '103' typically denotes specific internal configuration or capacitance values within the product line.

Replacement Considerations

Cross-reference with other FN2500 variants such as FN2500-25-08-C13 for higher current needs. Ensure substitute models maintain the same C13 connector type and mounting style. Verify identical voltage and leakage current specifications to guarantee system safety and compliance.
