FN2500-20-05-C13

Overview

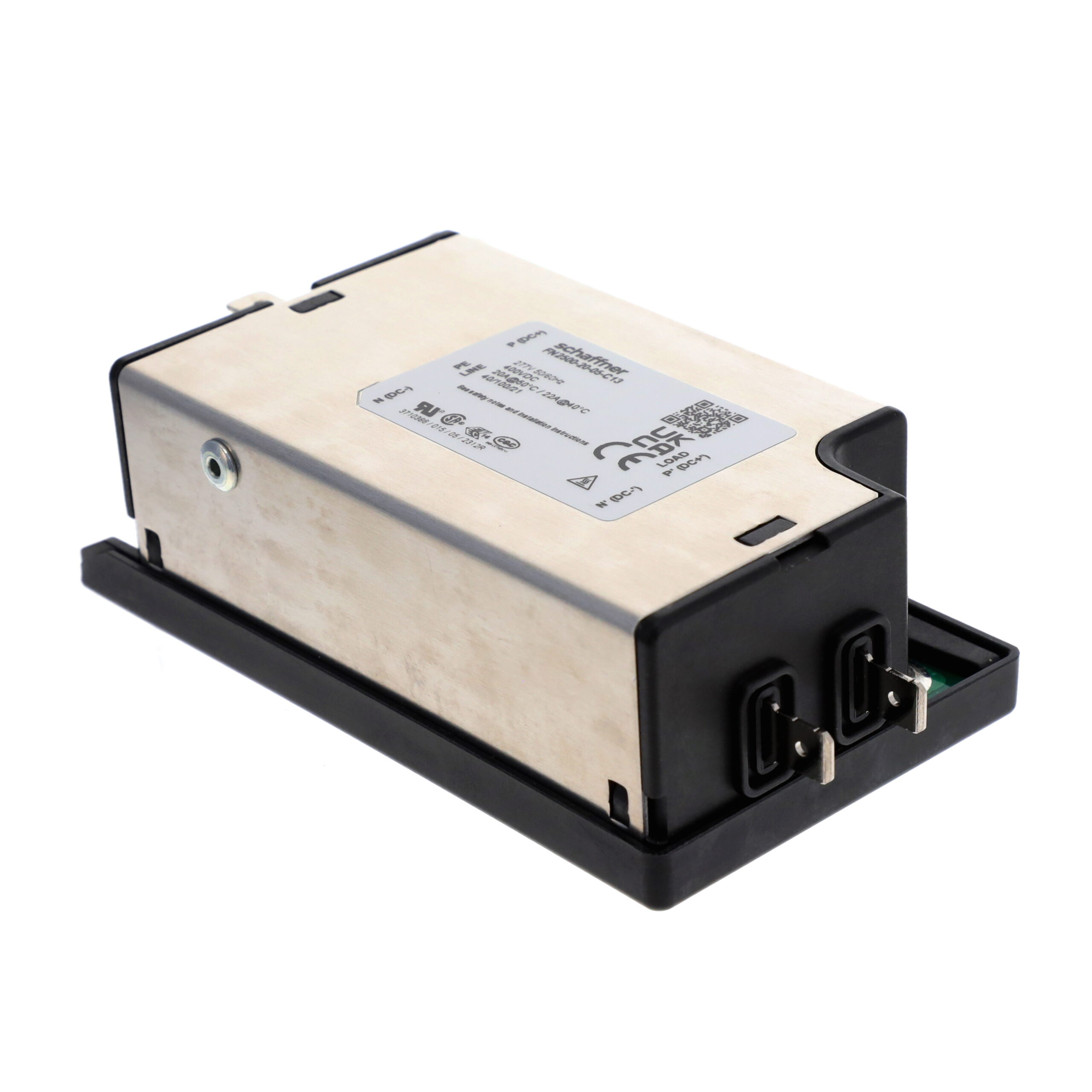

The Schaffner FN2500-20-05-C13 is a single-phase EMI/EMC power line filter designed for chassis mounting. It supports a maximum current of 20A and operates at voltages up to 277VAC or 400VDC. The component features Faston terminals and is rated for frequencies from DC to 60Hz. Its physical dimensions are optimized for low-profile applications, ensuring efficient integration into compact electronic enclosures while providing effective noise suppression.

Feature Summary

• Single-phase configuration for AC and DC power line filtering
• Chassis mount design with Faston quick-connect terminals
• Low-profile form factor suitable for space-constrained installations

Applications

• Robotics systems requiring EMC compliance
• Data center power distribution units
• Industrial control equipment

Procurement Notes

Verify the specific terminal type and voltage rating against your system requirements before ordering. Confirm that the chassis mounting style aligns with your enclosure design. Ensure the operating frequency range meets your application needs. Check for any regional certification requirements relevant to your deployment location.

Selection Notes

Select this model when a single-phase filter with 20A capacity is required. Consider the low-profile height if vertical space is limited. Verify compatibility with Faston connectors on the mating PCB or busbar. Ensure the 277VAC/400VDC rating exceeds your system's maximum operating voltage.

Part Context

This component belongs to the FN2500 series, which offers high-performance EMC filtering in a low-profile package. The series is engineered for demanding environments such as robotics and data centers. It provides reliable noise attenuation across DC to 60Hz frequencies, supporting various industrial and commercial power applications.

Replacement Considerations

Check for direct substitutes within the FN2500 series with different current ratings or terminal options. Verify mechanical fit and electrical specifications before swapping. No specific public substitute part numbers are confirmed for this exact configuration.
