FN2500-20-08-C13

Overview

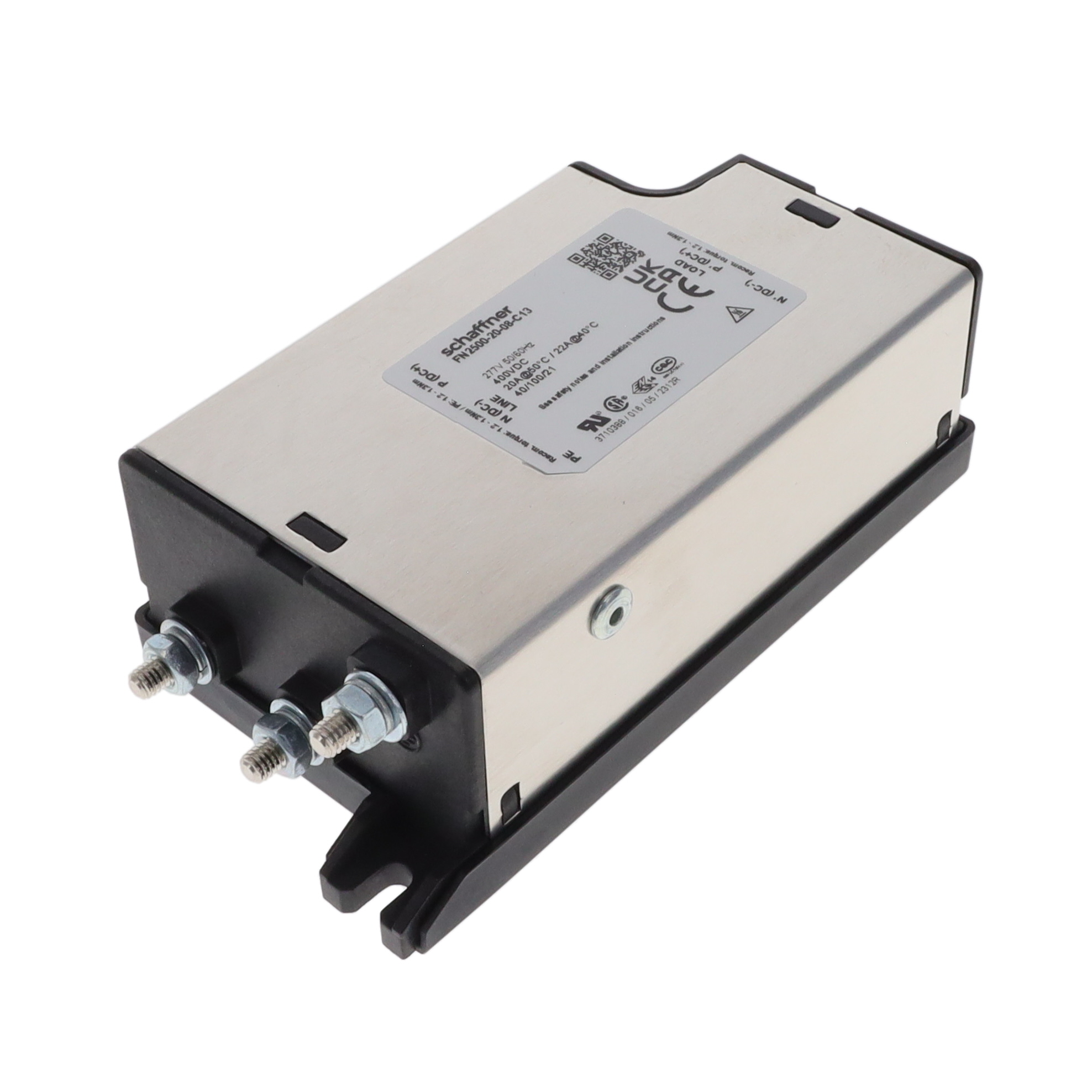

The Schaffner FN2500-20-08-C13 is a single-phase EMC/EMI power line filter from the FN2500 series, rated for 20 A and voltages of 277 VAC or 400 VDC. It operates at frequencies up to 400 Hz and features M4 screw terminals for secure connection. Designed for chassis mounting, this component provides essential noise suppression in demanding electrical environments while maintaining compliance with RoHS standards.

Feature Summary

• Single-phase configuration optimized for AC/DC power line filtering applications
• Chassis mount design ensures stable mechanical integration into equipment enclosures
• M4 screw terminal interface provides robust electrical connectivity

Applications

• Industrial machinery power conditioning
• Medical equipment noise suppression
• Telecommunications infrastructure filtering

Procurement Notes

Verify the specific voltage rating (277 VAC / 400 VDC) and current capacity (20 A) against your system requirements before procurement. Confirm that the chassis mounting style and M4 screw terminal type are compatible with your assembly design. Ensure the operating temperature range meets your environmental specifications.

Selection Notes

Select this model when a single-phase filter with a 20 A rating is required for systems operating at 277 VAC or 400 VDC. The chassis mount form factor is suitable for direct installation onto metal panels. Verify that the M4 screw terminal spacing aligns with your PCB or busbar layout constraints.

Part Context

This component belongs to the Schaffner FN2500 series, which specializes in single-phase EMC/EMI filters. The series is engineered for general-purpose power line filtering, offering reliable performance in industrial and commercial applications where electromagnetic interference must be minimized.

Replacement Considerations

Direct substitutes within the same series include FN2500-32-08-C13 for higher current ratings. Cross-brand equivalents may exist but require verification of terminal types and mounting dimensions.
