FN2500-20-103-C13

Overview

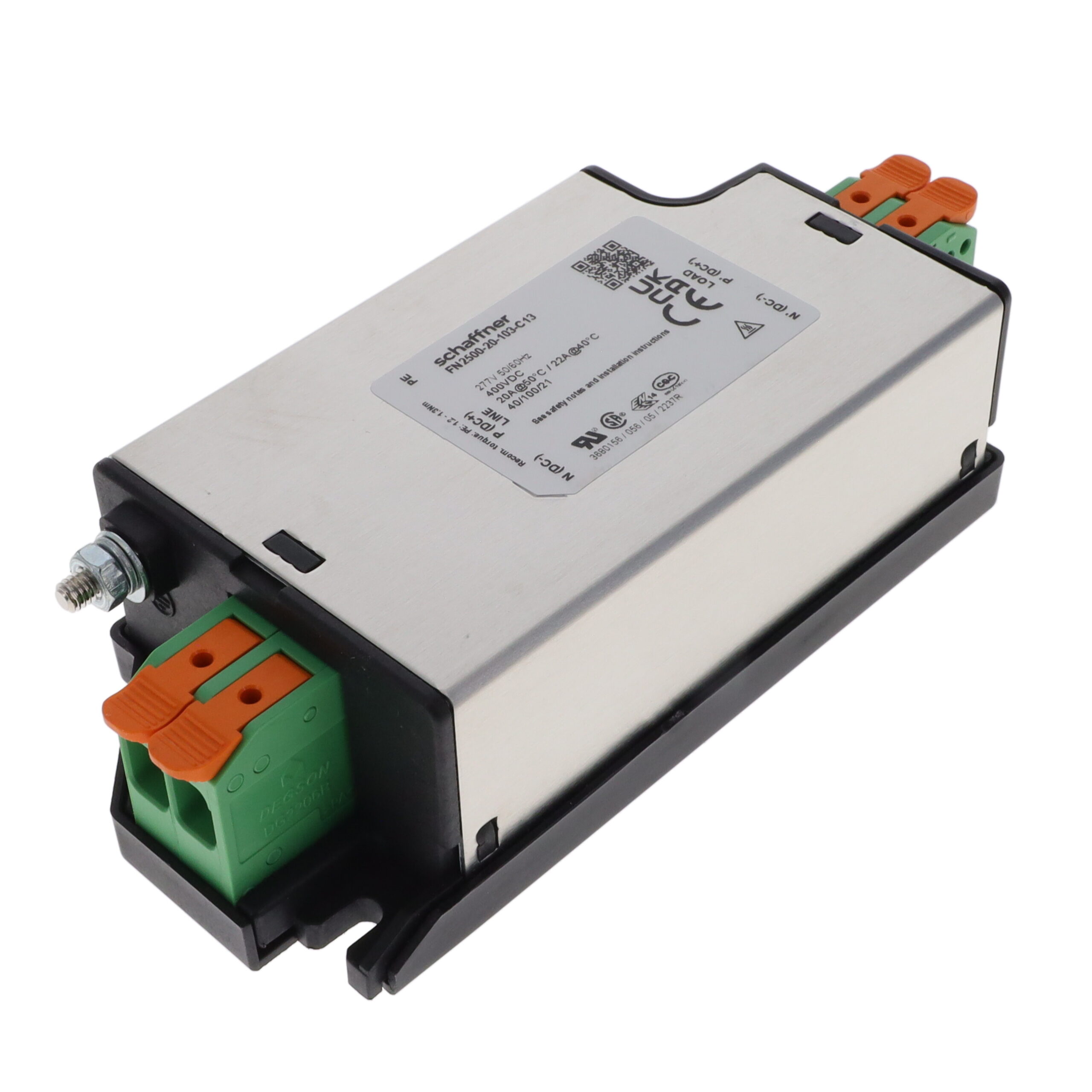

The FN2500-20-103-C13 is a single-phase EMI/EMC power line filter from the Schaffner FN2500 series. It features a low-profile design suitable for high-density installations. The unit is rated for 277 VAC and 400 VDC, with a continuous current rating of 20 A. It utilizes screw terminals for secure connection and supports rack mounting configurations.

Feature Summary

• Low-profile construction optimized for space-constrained environments
• High-performance EMC/RFI attenuation capabilities
• Robust mechanical design supporting rack mount installation

Applications

• Data center infrastructure equipment
• Audio and video processing systems
• Machine tool and machinery equipment

Procurement Notes

Verify that the specific suffix '103' aligns with the required voltage and terminal configuration for your system. Confirm compliance requirements such as RoHS status against current regulatory standards before finalizing procurement orders to ensure compatibility with existing assembly processes.

Selection Notes

Select this component when a single-phase filter with a 20 A rating is required for 277 VAC or 400 VDC applications. Consider the low-profile form factor if vertical space within the chassis or rack is limited. Ensure the screw terminal interface matches the available wiring harness specifications.

Part Context

This model belongs to the FN2500 series, which is engineered for demanding industrial and commercial environments. The series emphasizes compactness without compromising filtering efficiency, making it a standard choice for modern electronic equipment requiring reliable noise suppression in single-phase power lines.

Replacement Considerations

Cross-reference part numbers within the FN2500 family for variations in current rating or terminal style. Verify that any substitute maintains the same 20 A rating and 277 VAC/400 VDC voltage specifications to ensure circuit integrity.
