FN2500-25-07-C13

Overview

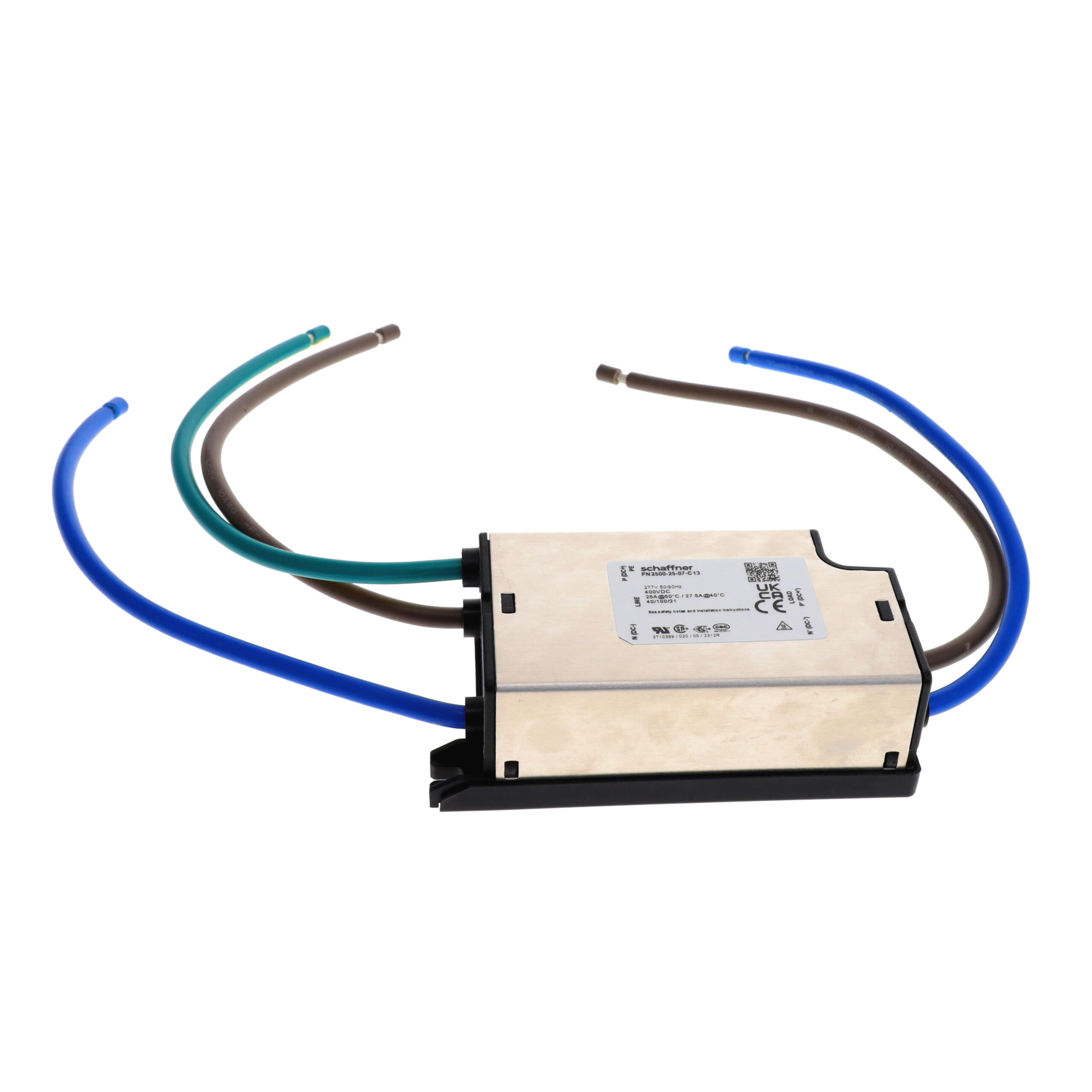

The Schaffner FN2500-25-07-C13 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features wire lead termination and supports rated currents of 25 A with voltage ratings up to 277 VAC and 400 VDC. The component operates within a frequency range of DC to 60 Hz and utilizes a single-stage configuration. This low-profile, high-performance filter is engineered for effective noise suppression in power supply applications.

Feature Summary

• Single-stage EMI/RFI filtering architecture
• Chassis mount installation style
• Wire lead termination method

Applications

• Power supply input stages
• Industrial equipment noise suppression
• Medical device power conditioning

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm current availability and compliance status. Ensure that the 25 A rating and 277 VAC specifications align with your system requirements before procurement. Check for any recent product change notices regarding packaging or material composition updates.

Selection Notes

Select this component when a single-phase, chassis-mount solution is required for frequencies up to 60 Hz. The 25 A current capacity and wire lead design suit applications needing direct wiring integration. Confirm that the single-stage topology provides sufficient attenuation for your specific electromagnetic interference environment.

Part Context

This model belongs to the FN2500 series, which offers low-profile, high-performance EMC/RFI filters. The series is characterized by its suitability for various industrial and commercial power applications requiring reliable noise reduction in compact form factors.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage limits, and physical dimensions to ensure compatibility with existing designs.
