FN2500-25-08-C13

Overview

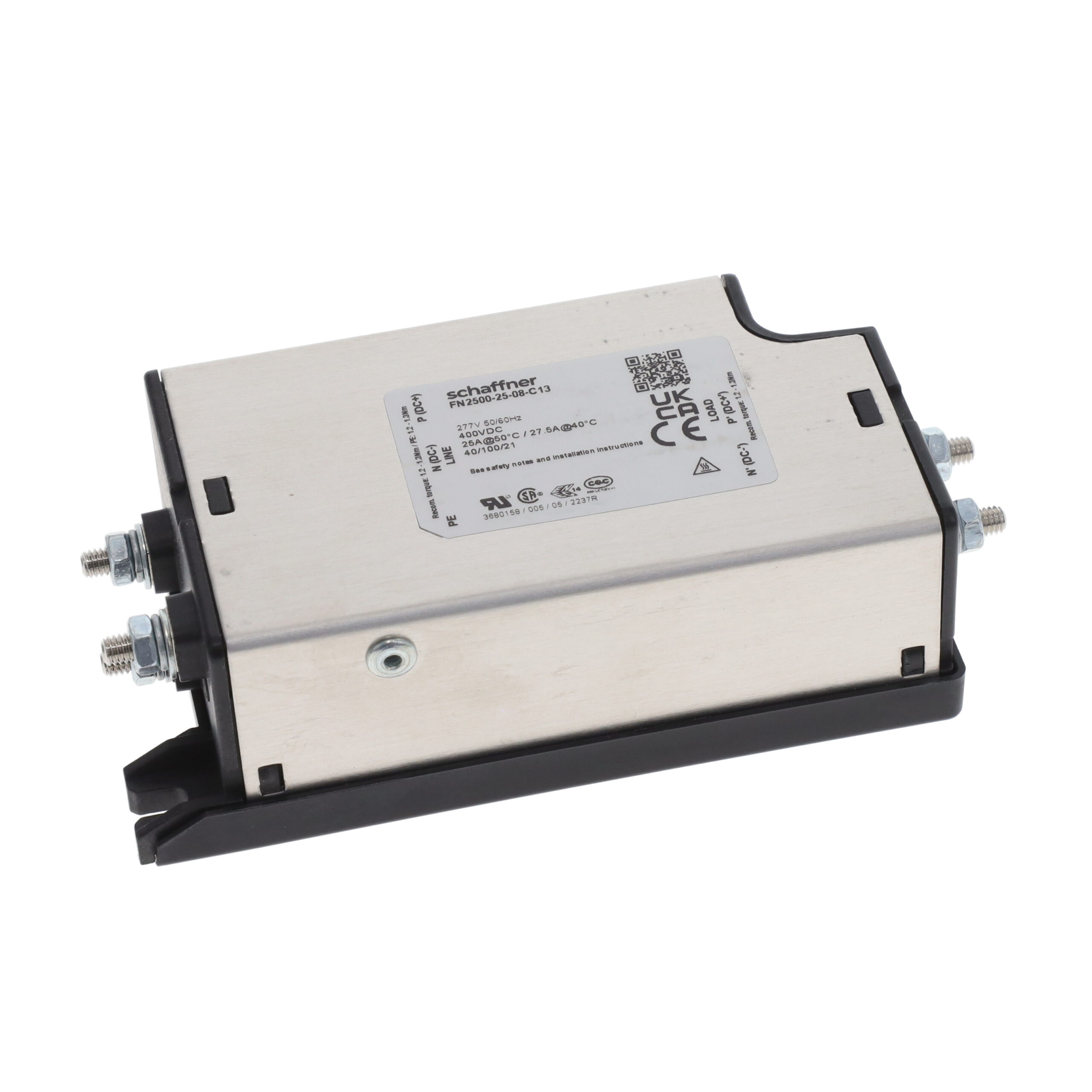

The FN2500-25-08-C13 is a single-phase EMI/EMC power line filter from the Schaffner FN2500 series, manufactured by TE Connectivity. It features a 25 A current rating and a 277 VAC voltage rating, designed for operation at frequencies between 0 Hz and 60 Hz. The unit utilizes screw termination and rack mount installation. Key electrical parameters include an 870 µA leakage current and a 10 nF capacitance value.

Feature Summary

• Provides electromagnetic interference suppression for single-phase AC power lines
• Supports secure mechanical integration via rack mount configuration
• Ensures reliable electrical connection through screw termination style

Applications

• Industrial machinery power supply protection
• Medical equipment input filtering
• Information technology hardware noise reduction

Procurement Notes

Verify the specific suffix C13 against official datasheets to confirm terminal type and mounting hardware compatibility. Ensure the 277 VAC rating aligns with the target system's nominal voltage. Confirm that the 25 A continuous current capacity meets the load requirements without exceeding thermal limits during operation.

Selection Notes

Select this component when single-phase filtering is required for systems operating up to 277 VAC. The 25 A rating suits moderate power applications. Consider the rack mount form factor if panel space allows. Verify that the 870 µA leakage current is acceptable for sensitive safety standards in the intended deployment environment.

Part Context

This filter belongs to the FN2500 series, which offers various current ratings and termination options within the same chassis design family. The model number encodes specific electrical and mechanical attributes, distinguishing it from other variants like the FN2500-32-08-C13 or FN2500-20-08-C13 based on current and terminal specifications.

Replacement Considerations

Publicly confirmed substitutes are not available in the provided documentation. Cross-referencing requires matching the 25 A rating, 277 VAC voltage, screw termination, and rack mount dimensions precisely.
