Product Detailed Parameters
- Description：LINE FLTR 400VDC 277VAC 25A CHAS
- Series：FN2500
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：400V
- Voltage - Rated AC：277V
- Current：25 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：1.5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

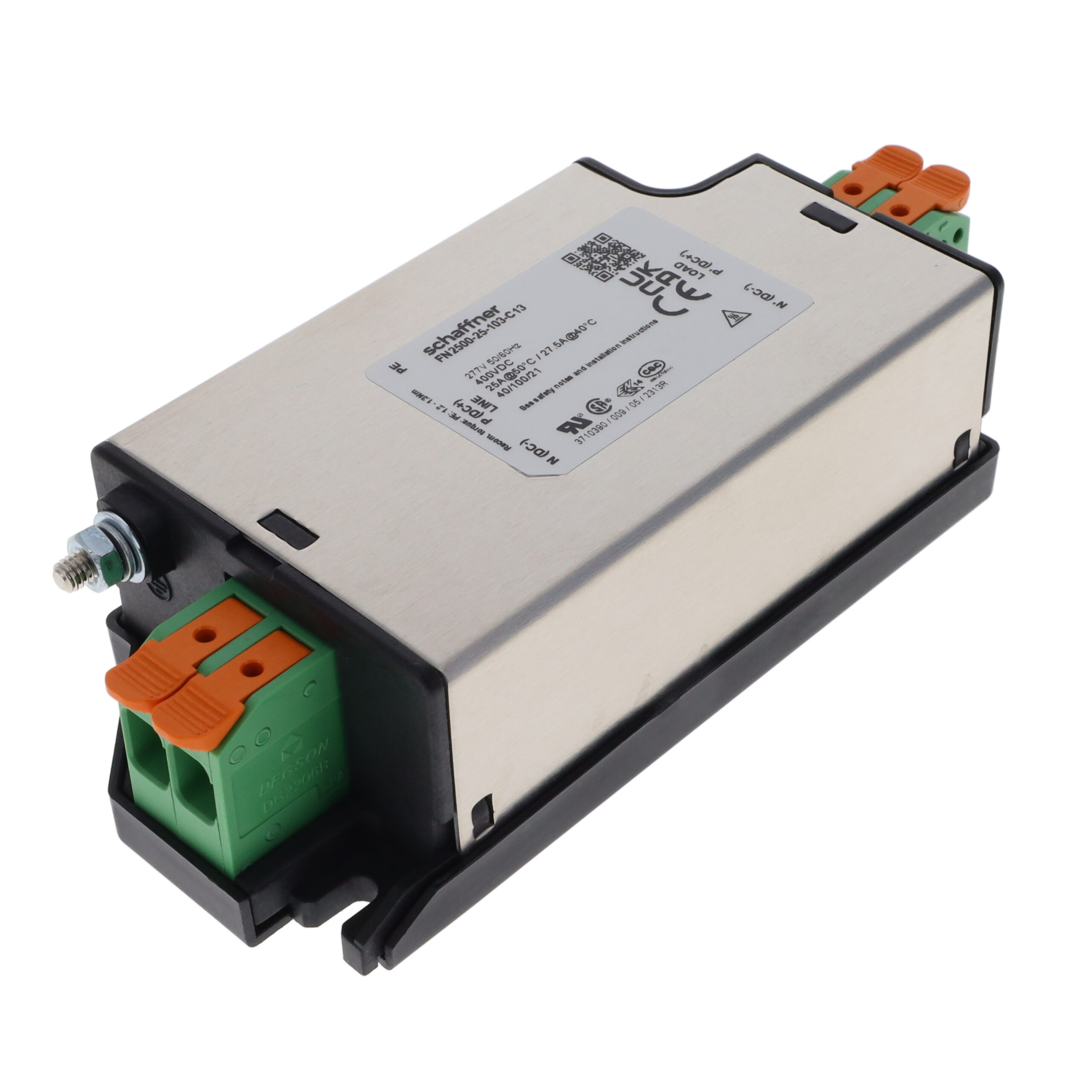

The FN2500-25-103-C13 is a single-phase EMC/EMI power line filter manufactured by TE Connectivity / Schaffner. It features a 25 A current rating and operates at voltage ratings of 277 VAC and 400 V DC. The component supports frequencies from DC to 60 Hz and utilizes a terminal block connection style with chassis mount installation. Key electrical specifications include a capacitance of 10 nF and a leakage current of 870 uA.
Feature Summary
- Provides EMI and EMC suppression for single-phase AC and DC power lines
- Designed for chassis mounting with terminal block connections
- Complies with RoHS standards
Applications
- Industrial equipment power conditioning
- Medical device power supplies
- General purpose electronic systems requiring noise filtering
Procurement Notes
Verify the specific datasheet version for the FN2500-25-103-C13 to confirm exact compliance certifications such as CSA, ENEC, or UR, as these vary by manufacturing batch. Ensure the application environment temperature falls within the specified operating range. Confirm that the terminal block interface matches the wiring harness requirements before finalizing procurement.
Selection Notes
Select this model when a single-stage filter is sufficient for noise reduction in single-phase applications up to 25 A. The 10 nF capacitance value is suitable for standard leakage current limits in many regions. Consider the chassis mount form factor for integration into enclosures where space allows for direct panel installation.
Part Context
This component belongs to the FN2500 series of power line filters from Schaffner. The series is designed for general-purpose EMI/EMC filtering in various industrial and commercial applications. The part number indicates a 25 A rating and specific terminal configuration.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mounting hardware and terminal specifications if considering alternative models from other manufacturers.
