FN2500-32-07-C13

Overview

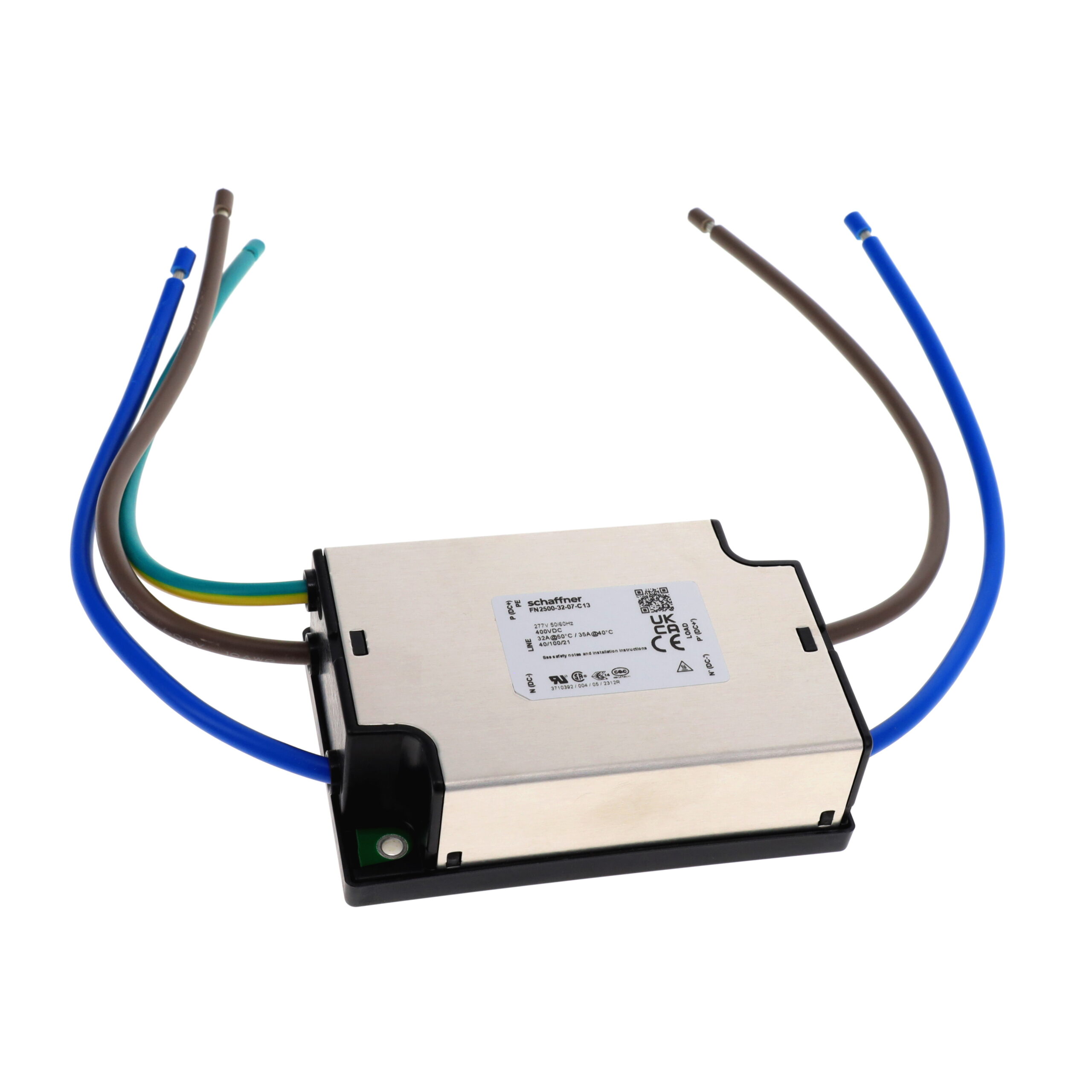

The FN2500-32-07-C13 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Schaffner. It is rated for 32 A current and operates at voltages of 277 VAC or 400 VDC. The device supports frequencies from DC to 60 Hz and utilizes a single-stage configuration. It features wire leads for connection and is designed for chassis mounting applications.

Feature Summary

• Single-stage electromagnetic interference suppression
• Wire lead termination style
• Chassis mount installation type

Applications

• Power distribution systems
• General-purpose filtering requirements
• EMC/EMI standard filter applications

Procurement Notes

Verify the specific voltage rating (277VAC/400VDC) and current capacity (32A) against system requirements. Confirm that the wire lead termination style matches existing wiring infrastructure. Ensure the chassis mount form factor fits the intended enclosure design. Check for required safety certifications such as CSA, ENEC, or UR depending on the target market regulations.

Selection Notes

Select this component when a single-phase solution with high current handling is required. The single-stage design offers a balance between attenuation performance and physical size. Verify compatibility with the operating frequency range up to 60 Hz. Consider the wire lead configuration for ease of integration into existing power entry modules.

Part Context

This part belongs to the FN2500 series of single-phase filters. The series provides cost-effective solutions for general-purpose filtering needs. It is part of TE Connectivity Schaffner's broader portfolio of EMC/EMI components designed for industrial and commercial electronic equipment protection.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
