Product Detailed Parameters
- Description：LINE FLTR 400VDC 277VAC 32A CHAS
- Series：FN2500
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：400V
- Voltage - Rated AC：277V
- Current：32 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：1.5mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

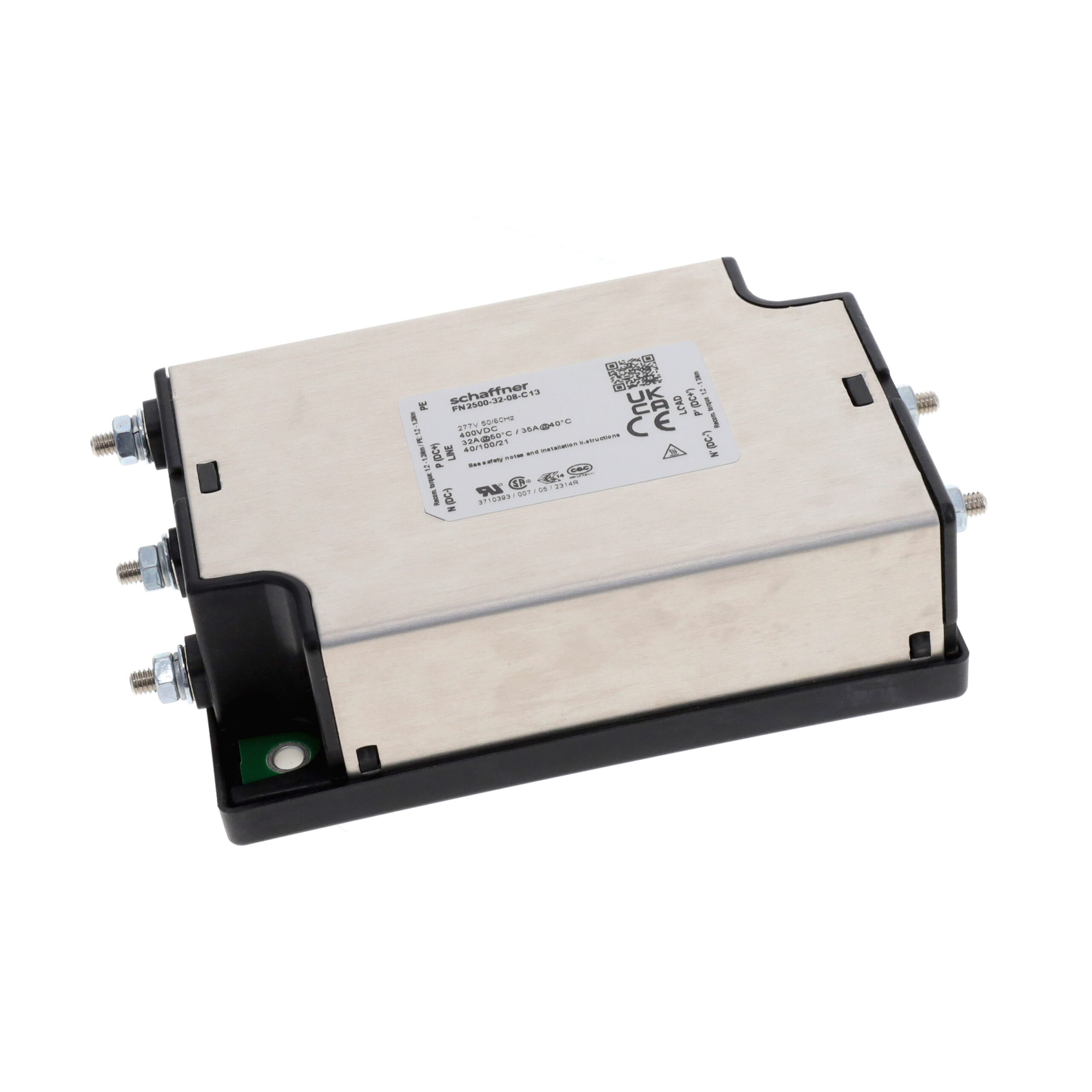

The Schaffner FN2500-32-08-C13 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 32 A and operates at voltages up to 277 VAC or 400 VDC. The component utilizes screw terminal connections for secure installation. It provides effective attenuation for electromagnetic interference in general-purpose applications, ensuring compliance with regulatory standards while maintaining stable performance under specified electrical conditions.
Feature Summary
- Chassis mount design for robust integration into equipment enclosures
- Screw terminal connection style for reliable electrical contact
- Single-phase configuration suitable for standard AC/DC power lines
Applications
- General-purpose electronic equipment filtering
- Industrial control systems requiring EMI suppression
- Power supply input stages for noise reduction
Procurement Notes
Verify the specific voltage rating (277 VAC / 400 VDC) and current capacity (32 A) against your system requirements before procurement. Confirm that the chassis mount form factor and screw terminal interface are compatible with your enclosure design. Ensure the application environment falls within the operational limits defined in the official datasheet to maintain safety certifications and performance integrity.
Selection Notes
Select this model when a single-phase filter with a 32 A rating is required for chassis-mounted installations. The screw terminal interface offers a secure connection method compared to quick-connect options. Consider the physical dimensions and mounting hole patterns to ensure fitment within the target equipment chassis. Verify compatibility with the specific frequency range and attenuation needs of the application.
Part Context
This component belongs to the FN2500 series of single-phase EMC/EMI filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is known for providing cost-effective solutions for general-purpose filtering requirements. The FN2500 series typically includes various current ratings and terminal configurations to suit different power line applications.
Replacement Considerations
Publicly confirmed substitute part numbers for FN2500-32-08-C13 were not identified in the provided source material. Cross-referencing with other manufacturers requires careful verification of electrical parameters, mounting style, and certification status.
