FN2500-32-103-C13

Overview

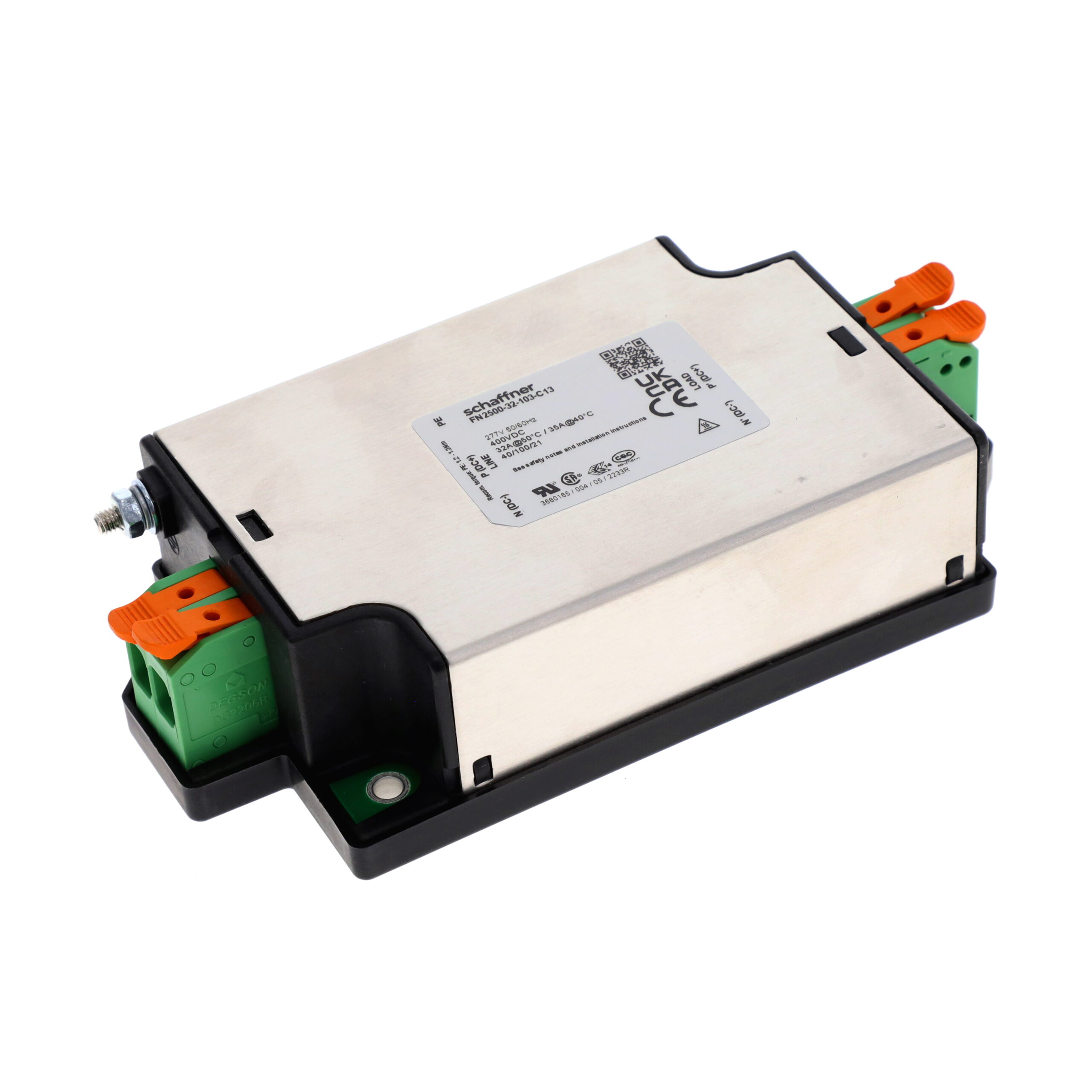

The FN2500-32-103-C13 is a single-phase EMC/EMI line filter from the Schaffner FN2500 series, designed for low-profile high-performance applications. It features a rated current of 32 A and operates at voltages up to 277 VAC or 400 VDC. The unit supports frequencies from DC to 60 Hz and utilizes a single-stage configuration with terminal block connections. This chassis-mount filter provides EMI suppression suitable for general-purpose industrial environments.

Feature Summary

• Single-stage EMI suppression architecture
• Low-profile chassis mounting design
• Terminal block connection interface

Applications

• Data centers
• Robotics systems
• General-purpose industrial equipment

Procurement Notes

Verify the specific voltage rating (277VAC vs 400VDC) against your system requirements before ordering. Confirm that the terminal block termination style matches your wiring infrastructure. Ensure the chassis mount footprint fits within the designated enclosure space. Check for any recent packaging material changes documented in product change notices.

Selection Notes

Select this model when a compact, single-phase filter is required for currents up to 32 A. The low-profile form factor is ideal for space-constrained enclosures in data centers or robotics. Compare attenuation performance against other single-stage options if higher suppression levels are needed for sensitive audio/video equipment.

Part Context

This component belongs to the FN2500 series, which is engineered for low-profile high-performance EMC filtering. The series is specifically noted for its suitability in data centers and robotics, offering a balance of electrical performance and physical size constraints typical of modern industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not identified in the provided documentation. Verify compatibility with alternative Schaffner models by comparing current ratings, voltage limits, and terminal types.
