FN251-4-07

Overview

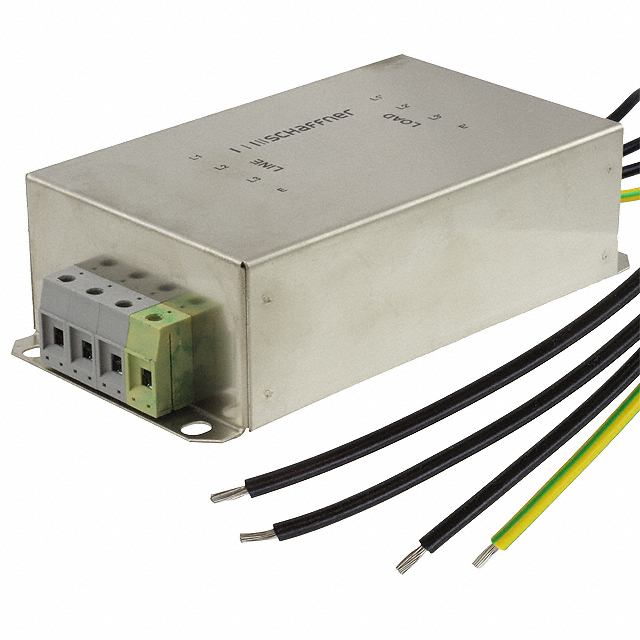

The Schaffner FN251-4-07 is a three-phase chassis-mounting power line filter designed for electromagnetic compatibility applications. It supports a rated voltage of 440V AC/DC and handles a continuous current of 4A. The unit utilizes a delta connection configuration and features wire motor drive filter technology. This component is engineered to suppress conducted emissions in industrial environments, ensuring compliance with EMC standards while maintaining signal integrity for connected power systems.

Feature Summary

• Three-phase chassis-mounting design for robust installation
• Supports 440V AC/DC rated voltage and 4A continuous current
• Delta connection configuration for power line filtering
• Wire motor drive filter technology integration

Applications

• Industrial motor drive systems
• Power line filtering for three-phase equipment
• Electromagnetic compatibility (EMC) suppression modules

Procurement Notes

Verify the specific datasheet version and RoHS declaration status before procurement. Confirm that the 440V AC/DC rating and 4A current capacity align with your system requirements. Ensure chassis mounting provisions match your enclosure design. Check for any recent PCN or labeling changes that may affect part identification or compliance documentation.

Selection Notes

Select this model when a three-phase solution is required for low-current applications up to 4A. The chassis-mount form factor suits panel installations where space is constrained. Verify that the delta connection type matches your network topology. Consider thermal management capabilities if operating near the maximum temperature limits specified in the official documentation.

Part Context

This component belongs to the Schaffner EMC Inc. power line filter family, specifically designed for industrial EMC solutions. It complements other chassis-mount filters by offering a compact three-phase option for lower current ratings. The product line emphasizes reliability and compliance with international electromagnetic interference standards for motor drives and power electronics.

Replacement Considerations

Consult official Schaffner cross-reference guides for verified substitutes. Ensure replacement parts maintain identical three-phase, 440V, and 4A specifications. Verify mechanical mounting dimensions and terminal types to ensure physical compatibility without modification.
