FN2520-10-05-C1111

Overview

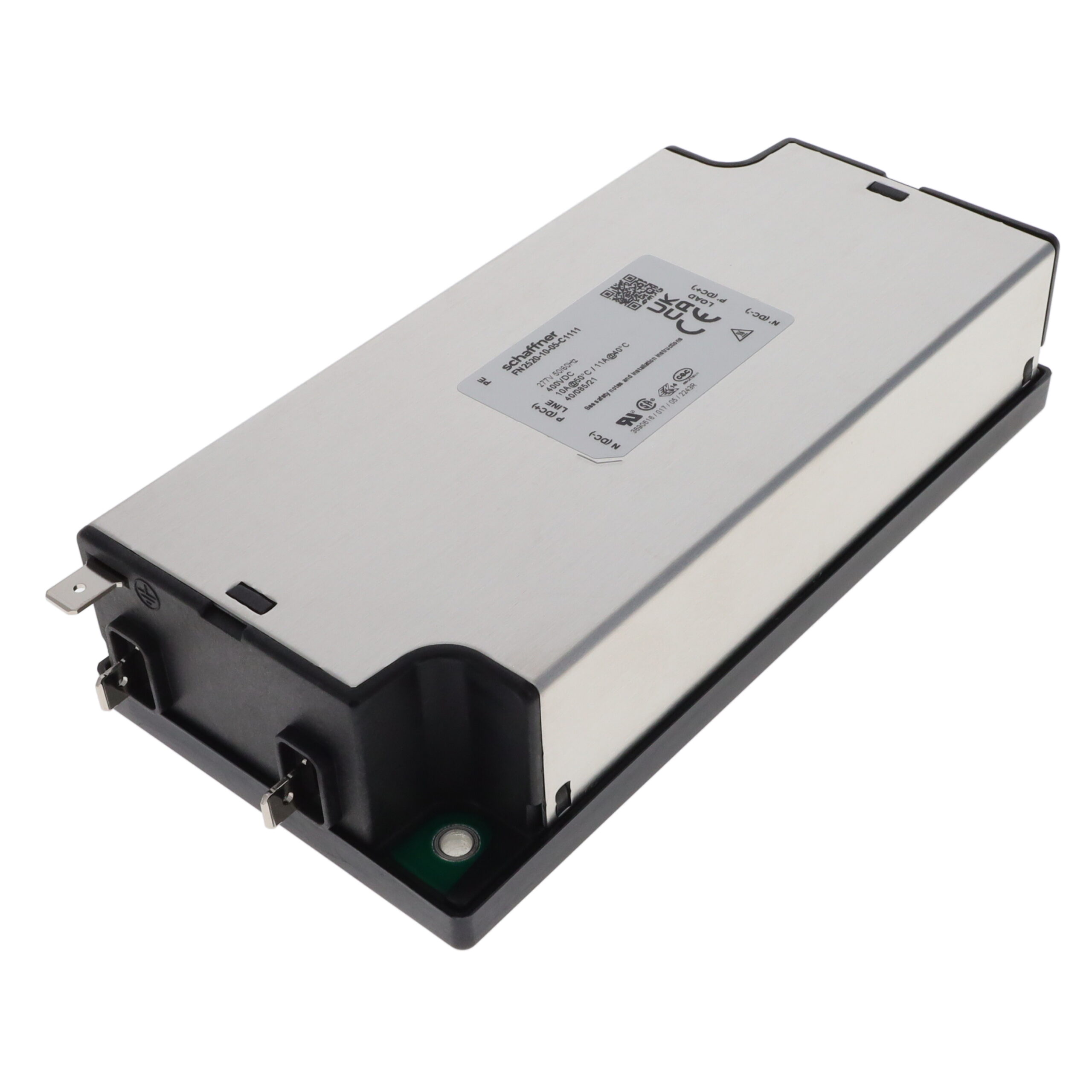

The Schaffner FN2520-10-05-C1111 is a single-phase EMC/EMI filter module designed for high-performance noise suppression. It features a compact 1U rack-mount form factor, suitable for space-constrained environments. The unit supports an input voltage of up to 277VAC and 400VDC, with a rated current of 10A at +40°C. This component integrates filtering capabilities directly into the power entry interface, ensuring compliance with electromagnetic compatibility standards while maintaining efficient thermal management under standard operating conditions.

Feature Summary

• Integrates EMI/EMC filtering within a standardized 1U rack-mount chassis design
• Supports both AC and DC input voltage configurations for versatile power applications
• Provides high attenuation performance for sensitive electronic equipment protection

Applications

• Machine tool and machinery equipment
• Data center infrastructure
• Robotics systems

Procurement Notes

Verify the specific suffix codes against official Schaffner documentation to confirm terminal type, mounting style, and certification status. Ensure the selected variant matches the required input voltage and current ratings for the target application. Cross-reference part numbers with authorized distributors to avoid counterfeit components and confirm availability.

Selection Notes

Select this model when a single-phase solution with integrated filtering and rack-mount compatibility is required. Consider the 10A rating and 1U footprint for space-limited installations. Evaluate thermal derating requirements if operating above +40°C ambient temperatures. Confirm compatibility with existing chassis mounting hardware and terminal connections.

Part Context

This component belongs to the FN2500/FN2520 series of single-phase filters from Schaffner EMC Inc. The series is engineered for general-purpose and high-performance EMC applications. These filters are widely used in industrial and commercial sectors where reliable noise suppression and robust construction are critical for system integrity.

Replacement Considerations

Consult official Schaffner substitution guides for direct equivalents. Verify that any alternative maintains the same 1U form factor, 10A current rating, and voltage specifications. Ensure mechanical mounting interfaces and electrical terminal types remain compatible with existing designs.
