Product Detailed Parameters
- Description：LINE FLTR 400VDC 277VAC 10A CHAS
- Series：FN2520
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：400V
- Voltage - Rated AC：277V
- Current：10:00 AM
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：L1 - 8.3mH, L2 - 8.3mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

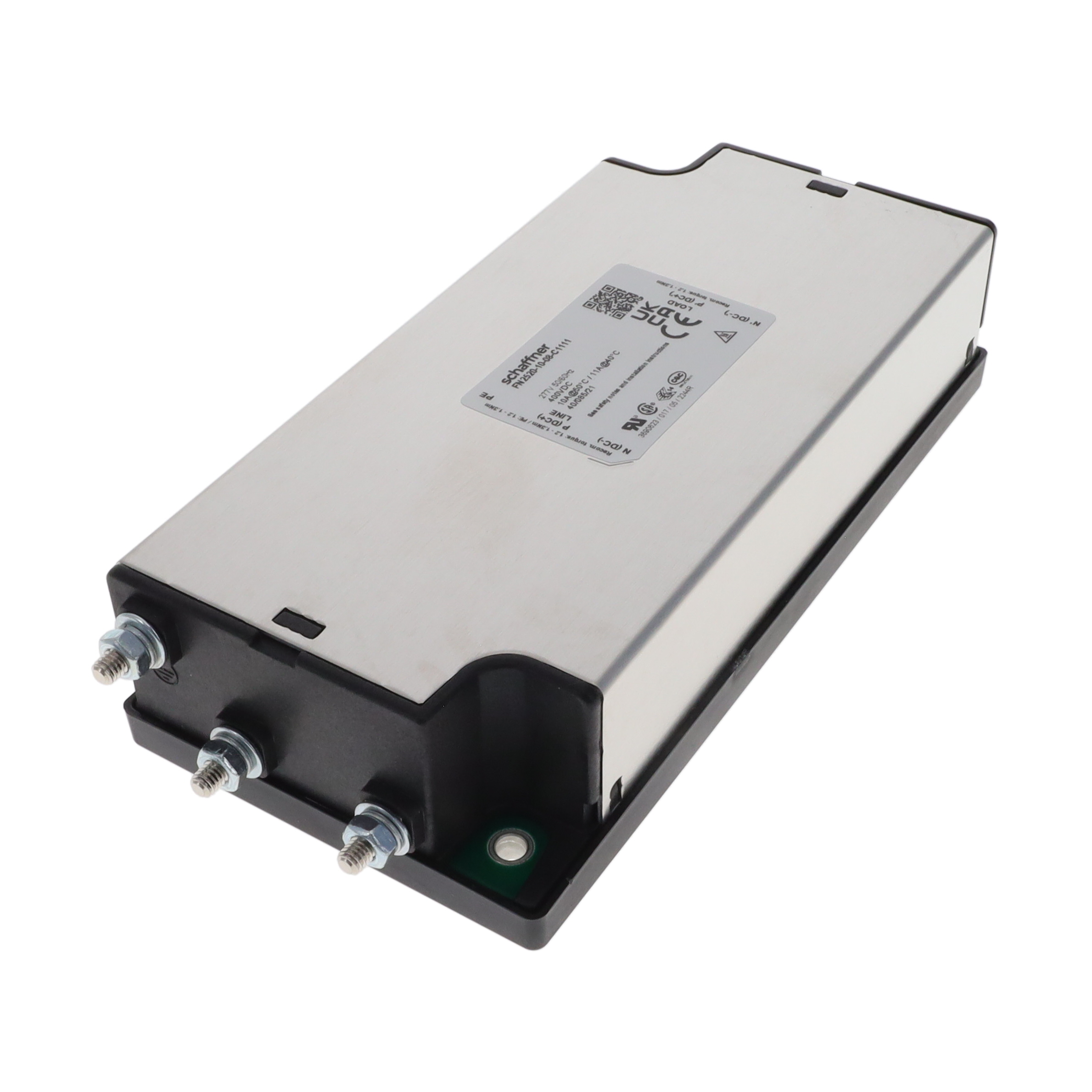

The Schaffner FN2520-10-08-C1111 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a C20 IEC input connector and operates at rated voltages of 277 VAC and 400 VDC, with a current rating of 10 A. The unit supports frequencies from DC to 60 Hz and includes a threaded post (M4) termination style. This component belongs to the FN2520 series, which utilizes a space-saving 1U rack-mount design suitable for high-performance noise suppression applications.
Feature Summary
- Space-saving 1U rack-mount design
- High-performance EMC/EMI filtering
- C20 IEC input connector interface
Applications
- Rack-mounted electronic equipment
- Industrial power distribution systems
- Medical device power supplies
Procurement Notes
Verify the specific voltage and current ratings against your system requirements before procurement. Confirm that the chassis mounting style and M4 threaded post termination are compatible with your installation hardware. Ensure the C20 connector polarity matches your power cord specifications. Cross-reference the datasheet for leakage current limits if safety compliance is critical for your application.
Selection Notes
Select this model when a compact 1U form factor is required for single-phase power filtering. It is appropriate for systems operating up to 277 VAC or 400 VDC with currents up to 10 A. Consider the chassis mount style and terminal block connections during mechanical integration planning. Verify compatibility with standard rack enclosures due to its specific dimensional constraints.
Part Context
This component is part of the FN2520 series by Schaffner, engineered for high-performance electromagnetic interference suppression. The series is characterized by its efficient use of space in 1U rack configurations. It serves as a critical interface between AC/DC power sources and sensitive electronic loads, ensuring signal integrity and regulatory compliance in industrial and medical environments.
Replacement Considerations
Direct substitutes within the same series include models like FN2520-20-103-C1111 for higher current capacity. Always verify electrical parameters and physical dimensions before swapping components. Consult official Schaffner documentation for cross-referencing equivalent parts with similar filtering characteristics and mounting styles.
