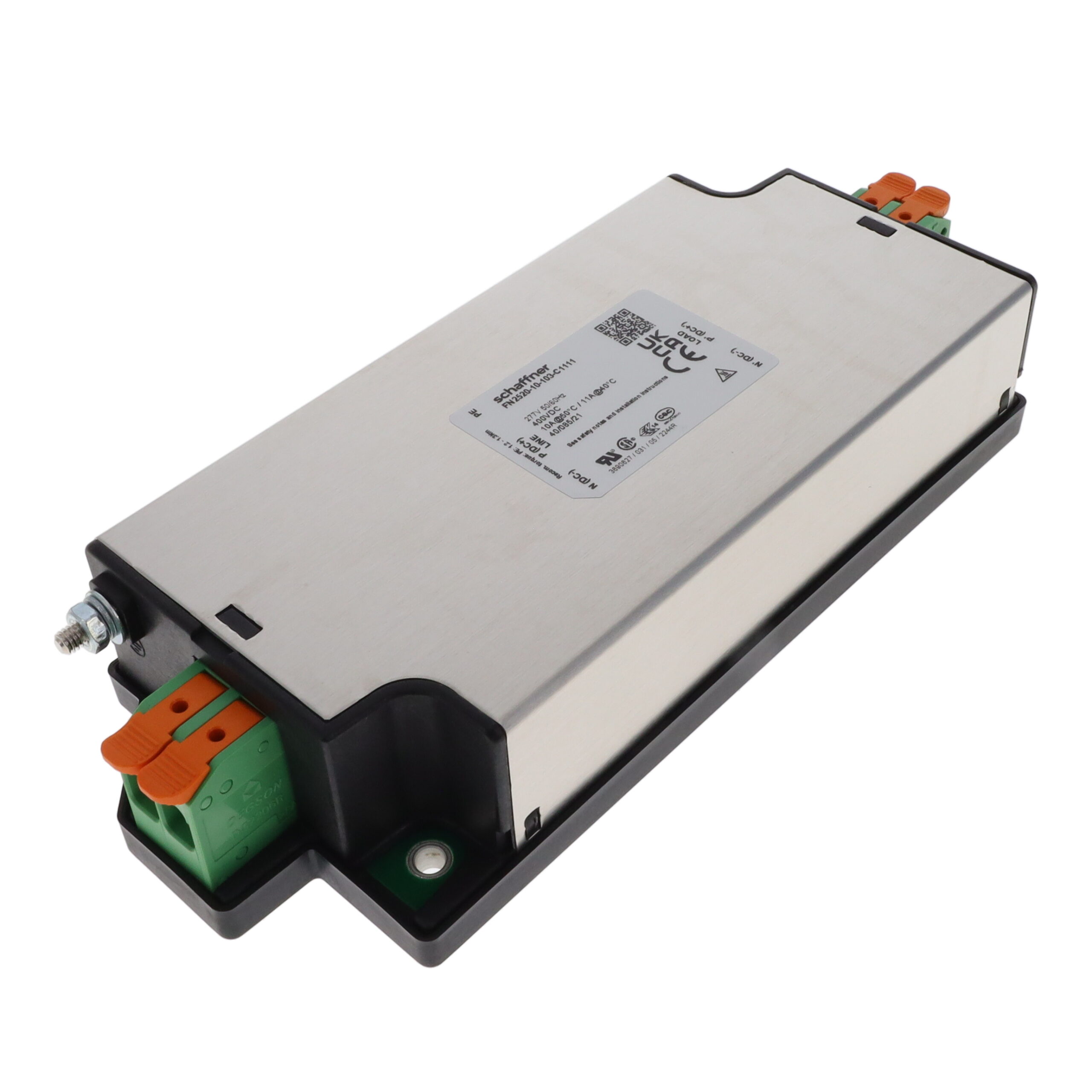

FN2520-10-103-C1111

$43.70

Description：LINE FLTR 400VDC 277VAC 10A CHAS
Series：FN2520
Mfr：Schaffner EMC Inc.
Package：Bulk

SKU:5dab07a8210a Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FLTR 400VDC 277VAC 10A CHAS
Series：FN2520
Mfr：Schaffner EMC Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：400V
Voltage - Rated AC：277V
Current：10:00 AM
Frequency - Operating：DC ~ 60Hz
Applications：General Purpose
Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
Operating Temperature：-40°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：L1 - 8.3mH, L2 - 8.3mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

FN2520-10-103-C1111

Overview

The FN2520-10-103-C1111 is a single-phase EMC/EMI power line filter from the Schaffner FN2520 series. It features a low-profile 1U rack-mount design suitable for space-constrained environments. The component has a rated voltage of 227 VAC and a current rating of 10 A at +40°C. It utilizes terminal block termination and is designed for operation at 50 Hz or 60 Hz frequencies.

Feature Summary

Space-saving 1U rack-mount chassis design
High-performance EMC filtering capabilities
Terminal block connection style

Applications

Robotics systems
Data centers
Automation equipment

Procurement Notes

Verify the specific part number against official Schaffner documentation to ensure compatibility with system requirements. Confirm that the 10A current rating and 227VAC voltage specifications align with the intended application's electrical parameters before procurement.

Selection Notes

Select this model when a low-profile, high-performance single-phase filter is required for robotics or data center applications. Ensure the installation environment supports the specified 1U rack-mount form factor and that the terminal block interface matches the wiring configuration.

Part Context

This component belongs to the FN2520 series, which offers excellent EMC filtering for various industrial applications. The series is characterized by its low profile and high performance, making it suitable for modern electronic systems requiring compact EMI suppression solutions.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers within the FN2520 series or compatible families. Do not assume interchangeability with other brands without verifying electrical and mechanical specifications.
