FN2520-15-05-C1111

Overview

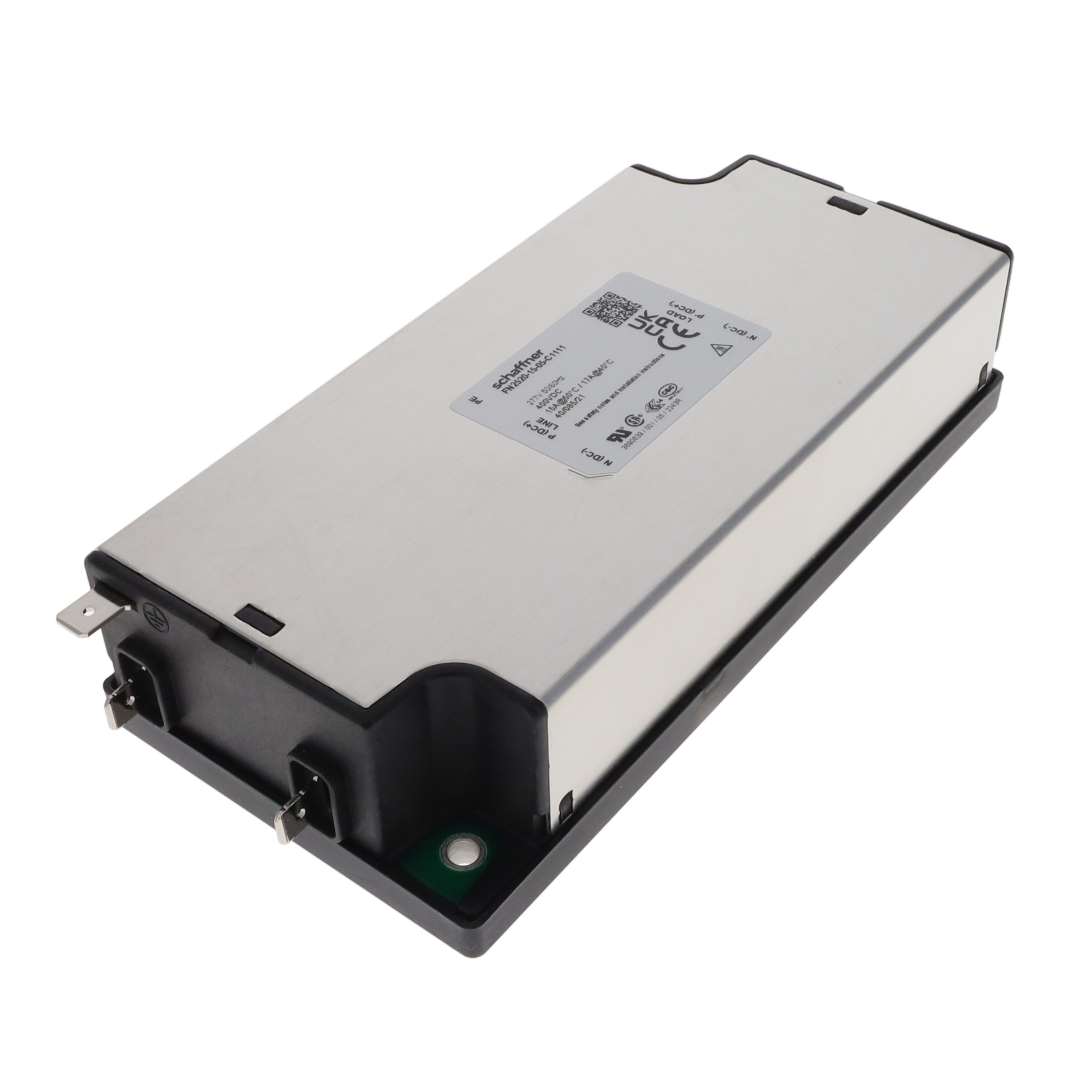

The Schaffner FN2520-15-05-C1111 is a single-phase power line filter module designed for chassis mounting. It features a rated DC voltage of 400VDC and an AC rating of 277VAC, with a continuous current capacity of 15A. The component utilizes a compact 1U rack-mount form factor to optimize space in equipment enclosures. It serves as an EMC/EMI suppression solution for industrial applications requiring robust noise filtering.

Feature Summary

• Space-saving 1U rack-mount design for efficient panel integration
• High-performance EMC/EMI filtering capabilities
• Suitable for high-voltage DC and AC power line applications

Applications

• Robotics systems
• Data center infrastructure
• Industrial control panels

Procurement Notes

Verify the specific suffix codes against official datasheets to confirm terminal type and mounting configuration. Ensure the selected variant matches the required voltage and current ratings for the target application. Cross-reference part numbers with manufacturer documentation to avoid substitution errors.

Selection Notes

Select this model for applications requiring a low-profile 1U footprint with 15A current handling. Confirm compatibility with 400VDC or 277VAC supply lines. Evaluate thermal management requirements within the enclosure to ensure operation remains within specified limits.

Part Context

This component belongs to the FN2520 series, which offers low-profile EMC filters for single-phase applications. The series provides various current ratings and terminal options to accommodate diverse industrial needs while maintaining strict emission standards.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Do not assume functional equivalence with other series without confirming electrical parameters and mechanical dimensions.
