FN2520-15-07-C1111

Overview

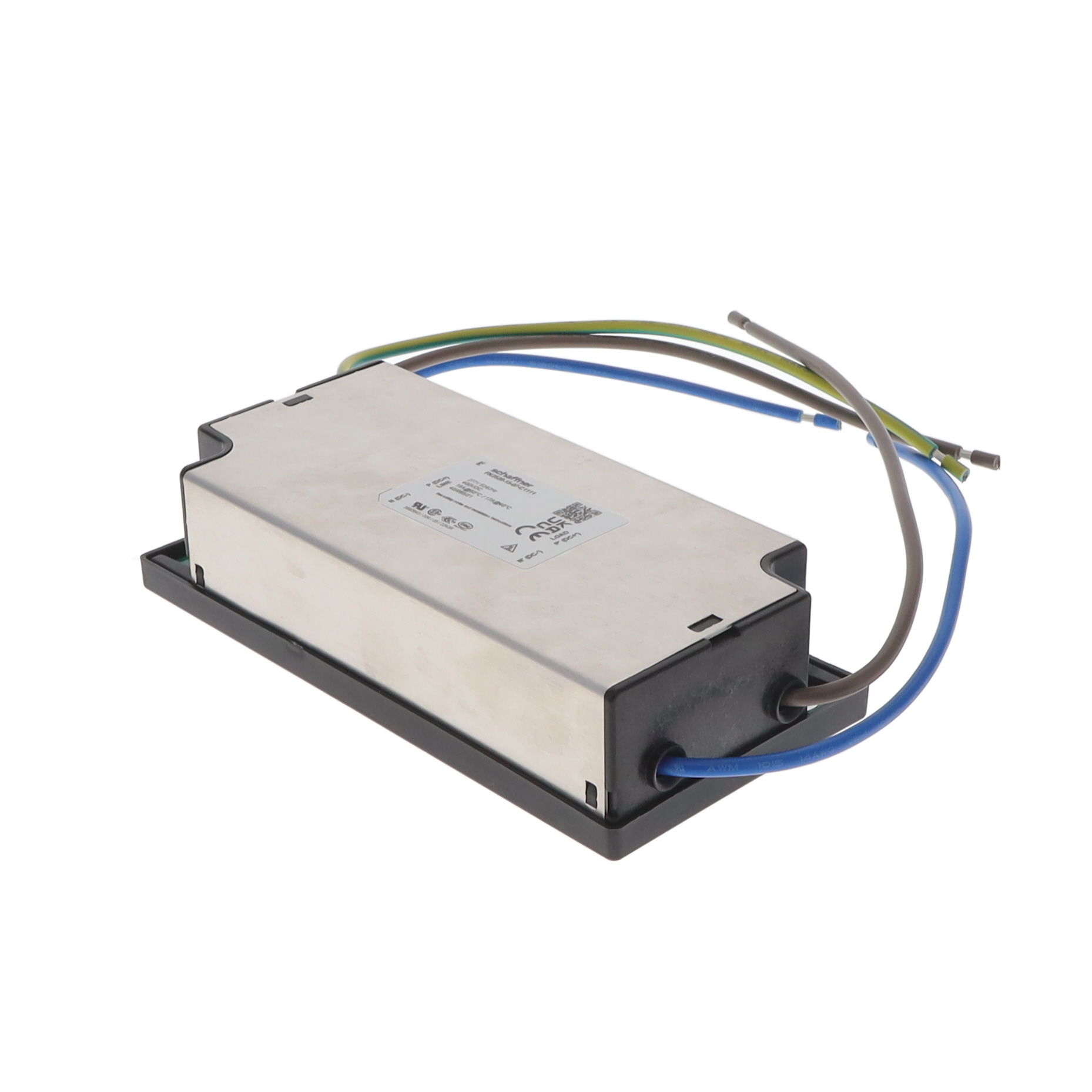

The Schaffner FN2520-15-07-C1111 is a single-phase chassis mount EMC/EMI power line filter designed for high-performance noise suppression. It features a rated voltage of 277VAC and 400VDC with a continuous current rating of 15A. The unit utilizes a chassis mounting style for secure installation in industrial enclosures. This component provides effective attenuation for electromagnetic interference, ensuring compliance with regulatory standards in demanding electronic environments.

Feature Summary

• Provides excellent EMC filtering performance for sensitive electronic systems
• Designed for robust chassis mounting to ensure mechanical stability
• Supports both AC and DC voltage applications for versatile integration

Applications

• Robotics systems requiring reliable noise suppression
• Data center infrastructure equipment
• General industrial control panels

Procurement Notes

Verify the specific suffix C1111 against official Schaffner documentation to confirm terminal configuration and certification status. Ensure the 15A current rating and 277VAC/400VDC voltage specifications match the target circuit requirements before procurement. Cross-reference the chassis mounting dimensions with the enclosure design to guarantee physical compatibility.

Selection Notes

Select this model when high attenuation is required for single-phase lines in space-constrained chassis environments. The 15A rating suits moderate-power applications where standard filters may be insufficient. Consider the chassis mount style if panel penetration or surface mounting is preferred over wire termination methods for improved grounding integrity.

Part Context

This component belongs to the FN2520 series, which offers low-profile designs for general-purpose filtering. The series is recognized for providing cost-effective solutions across various markets including robotics and data centers. It represents a balance between high performance and compact form factor within Schaffner's broader EMC portfolio.

Replacement Considerations

Consult official substitution guides for equivalent models within the FN2520 series or compatible single-phase chassis filters. Verify that any alternative part matches the 15A current and 277VAC/400VDC ratings precisely.
