- Description：LINE FLTR 400VDC 277VAC 15A CHAS
- Series：FN2520
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：400V
- Voltage - Rated AC：277V
- Current：15 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：L1 - 4mH, L2 - 4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

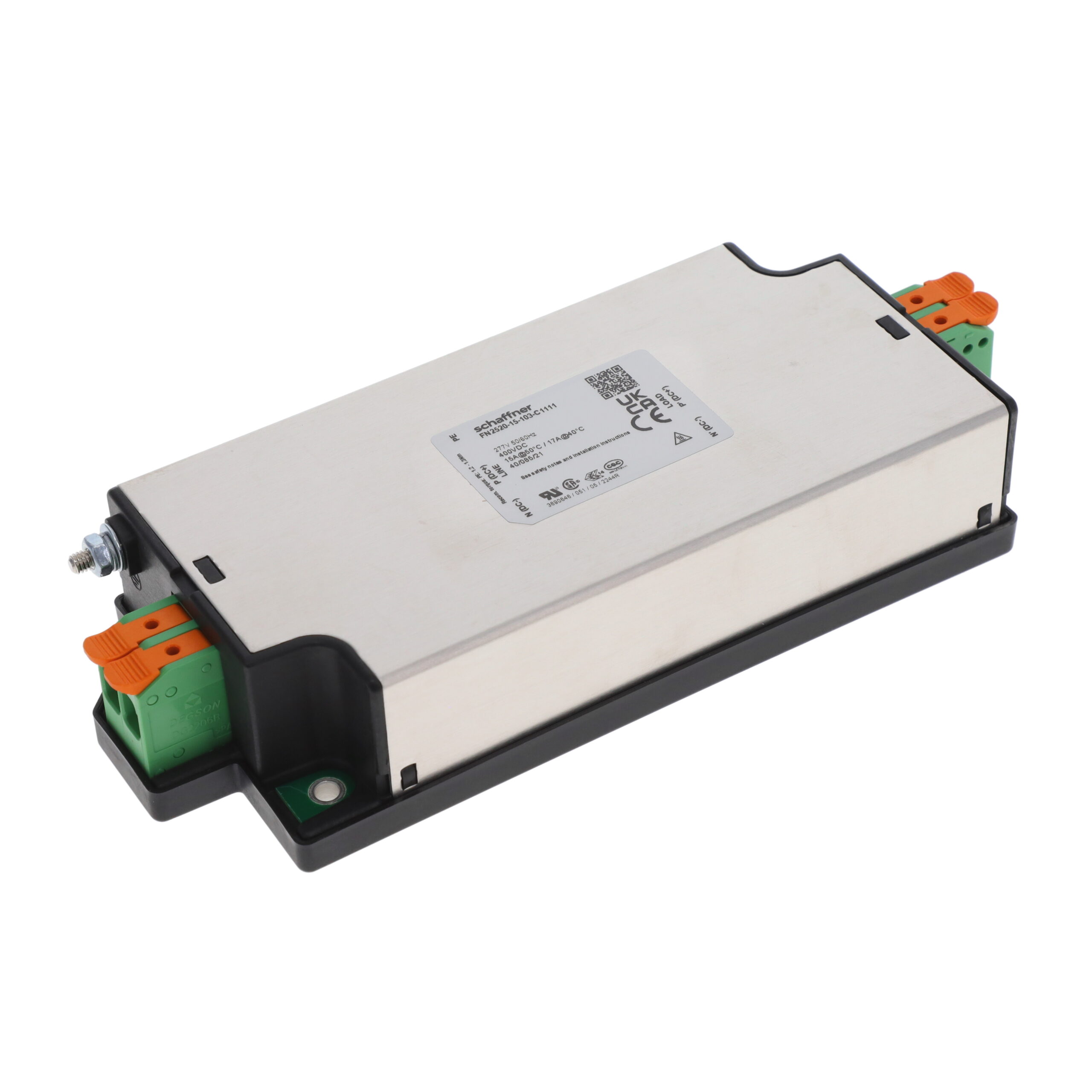

The Schaffner FN2520-15-103-C1111 is a single-phase EMC/EMI filter from the FN2520 series, designed for high-performance noise suppression in demanding environments. It features a 15 A current rating and supports voltages up to 277 VAC. The unit utilizes terminal block input and output connections, offering a low-profile form factor suitable for space-constrained installations. This component provides excellent attenuation characteristics required for robotics and data center applications.
Feature Summary
- Provides excellent electromagnetic compatibility filtering for sensitive electronic systems
- Designed specifically for high-noise environments such as robotics and data centers
- Features a low-profile construction to optimize panel and enclosure space utilization
Applications
- Robotics systems requiring robust EMI suppression
- Data center infrastructure equipment
- Industrial automation control panels
Procurement Notes
Verify that the specific suffix C1111 matches the required terminal configuration and voltage rating for your application. Confirm that the 15 A current capacity aligns with the load requirements. Ensure the terminal block interface is compatible with existing wiring harnesses. Cross-reference the part number with official Schaffner documentation to confirm availability and specifications before procurement.
Selection Notes
Select this model when high-performance filtering is required for single-phase AC lines in robotics or data center applications. The 15 A rating suits moderate power loads. The terminal block interface simplifies integration compared to soldered options. Consider the low-profile design if vertical space within the enclosure is limited. Verify compliance with relevant EMC standards for the target market.
Part Context
This component belongs to the Schaffner FN2520 series of very high-performance single-phase filters. The series is engineered to meet the stringent EMC demands of modern industrial and IT infrastructure. It complements other Schaffner solutions by offering a compact, high-efficiency filtering option for single-phase power lines in noisy electrical environments.
Replacement Considerations
Consult official Schaffner substitution guides for verified equivalents. Generic cross-references may not match the specific performance characteristics or mounting requirements of the FN2520 series.
