FN2520-25-103-C1111

Overview

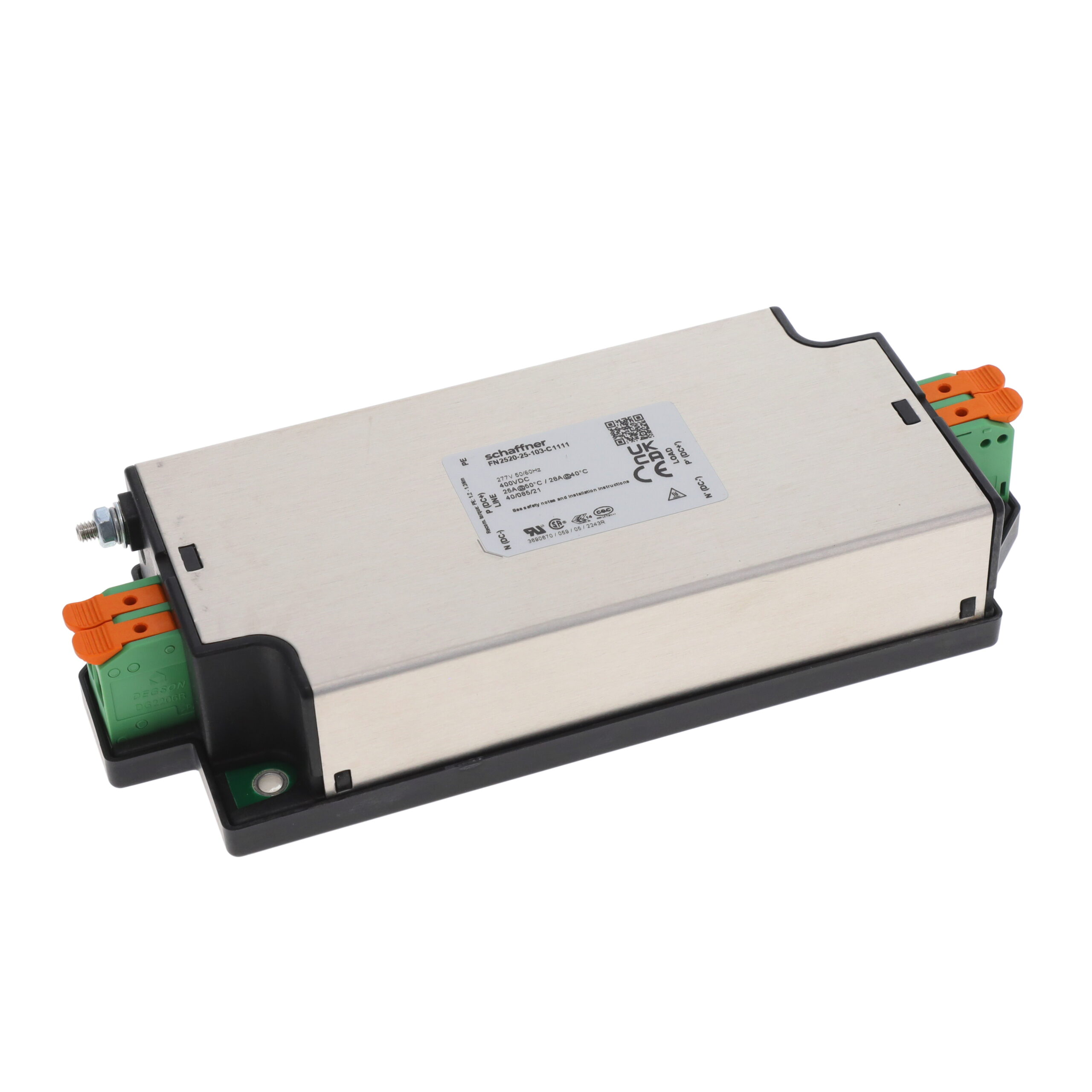

The Schaffner FN2520-25-103-C1111 is a single-phase EMC/EMI line filter designed for high-performance noise suppression. It features a low-profile, space-saving 1U rack-mount design suitable for panel integration. The unit supports an input voltage up to 250VAC at DC to 60Hz and provides a current rating of 25A at +40°C. Termination types include terminal blocks for both input and output connections.

Feature Summary

• Space-saving 1U rack-mount design for efficient panel integration
• High attenuation performance for robotics and data center applications
• Terminal block termination for secure electrical connections

Applications

• Robotics systems
• Data centers
• Automation equipment

Procurement Notes

Verify the specific part number suffix against official Schaffner documentation to confirm exact termination style and current rating specifications. Ensure compatibility with existing panel mounting constraints and thermal management requirements before procurement.

Selection Notes

Select this model for applications requiring robust single-phase filtering in compact spaces. Consider the 25A current rating and 1U form factor when designing enclosures for automation or computing infrastructure where space efficiency and EMI compliance are critical.

Part Context

This component belongs to the FN2520 series of single-phase filters from Schaffner EMC Inc. The series is engineered for general-purpose EMC/EMI suppression, offering a balance of high attenuation and physical compactness for modern electronic equipment designs.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalents. Generic cross-references may not match the specific 1U mechanical dimensions or terminal block configurations required for direct replacement.
