Product Detailed Parameters
- Description：LINE FLTR 400VDC 277VAC 32A CHAS
- Series：FN2520
- Mfr：Schaffner EMC Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：400V
- Voltage - Rated AC：277V
- Current：32 A
- Frequency - Operating：DC ~ 60Hz
- Applications：General Purpose
- Approval Agency：CE, CQC, CSA, ENEC, UKCA, UR
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M4)
- Inductance：L1 - 900µH, L2 - 900µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

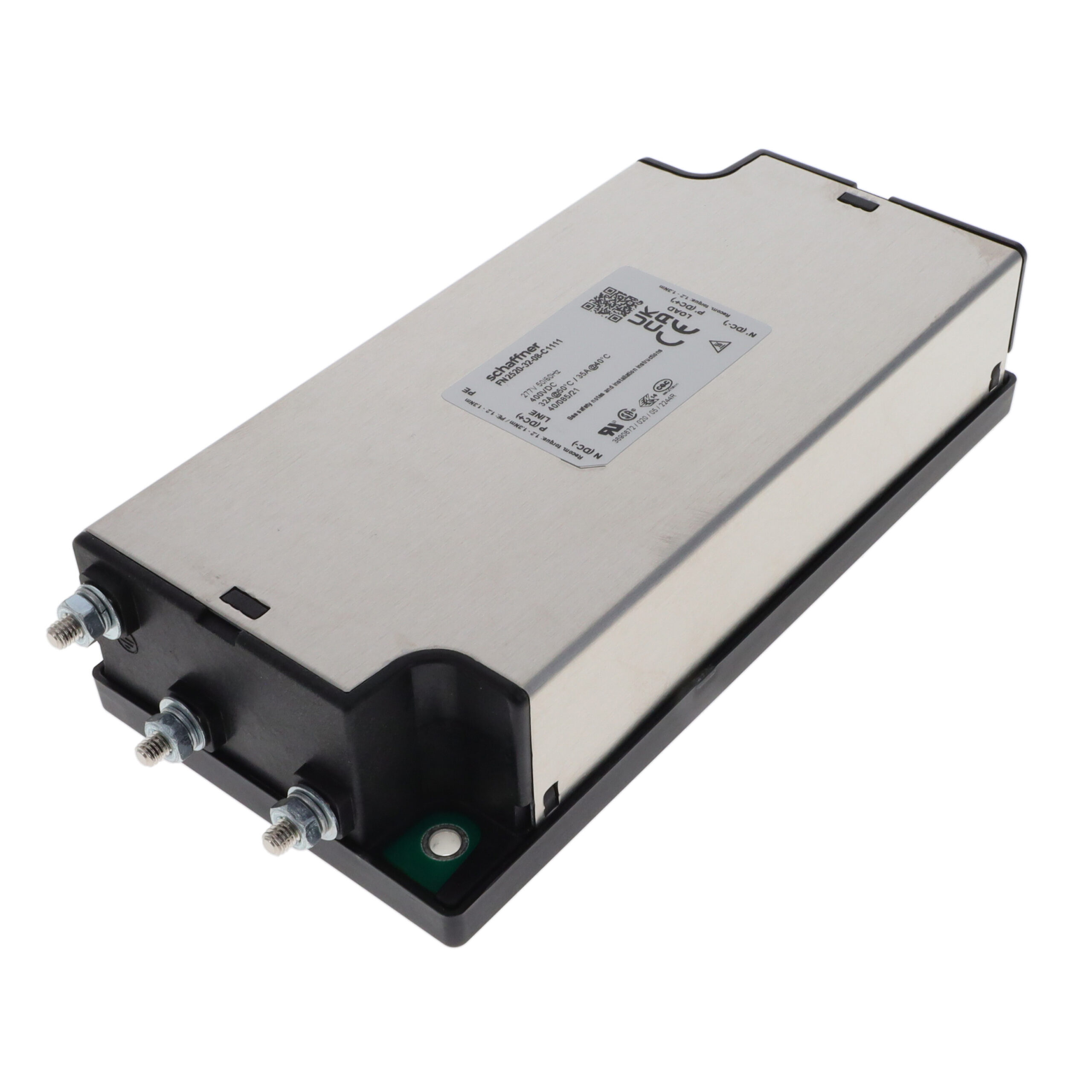

The Schaffner FN2520-32-08-C1111 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a current rating of 32 A and operates at voltages up to 277 VAC and 400 VDC. The component utilizes a two-stage filtering architecture to provide effective noise attenuation across power lines. Mounting is achieved via threaded posts with an M4 specification, ensuring secure installation in industrial enclosures.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Chassis mount design with threaded post termination
- Single-phase configuration for general-purpose applications
Applications
- Industrial machinery power supplies
- Medical equipment input stages
- Information technology hardware filtering
Procurement Notes
Verify the specific voltage and current ratings against the application requirements before procurement. Confirm that the M4 threaded post mounting style matches the enclosure design. Ensure compatibility with the target AC and DC voltage limits to maintain safety certifications and operational reliability.
Selection Notes
Select this model when a single-phase solution with high current capacity is required. The two-stage design offers superior attenuation compared to single-stage alternatives. Consider the physical dimensions and mounting constraints associated with the chassis-mount form factor during system integration planning.
Part Context
This component belongs to the Schaffner FN2520 series of power line filters. The series provides various current ratings and configurations for EMC compliance. The FN2520 series is widely used in industries requiring robust EMI suppression for sensitive electronic systems connected to mains power.
