FN2520-32-103-C1111

Overview

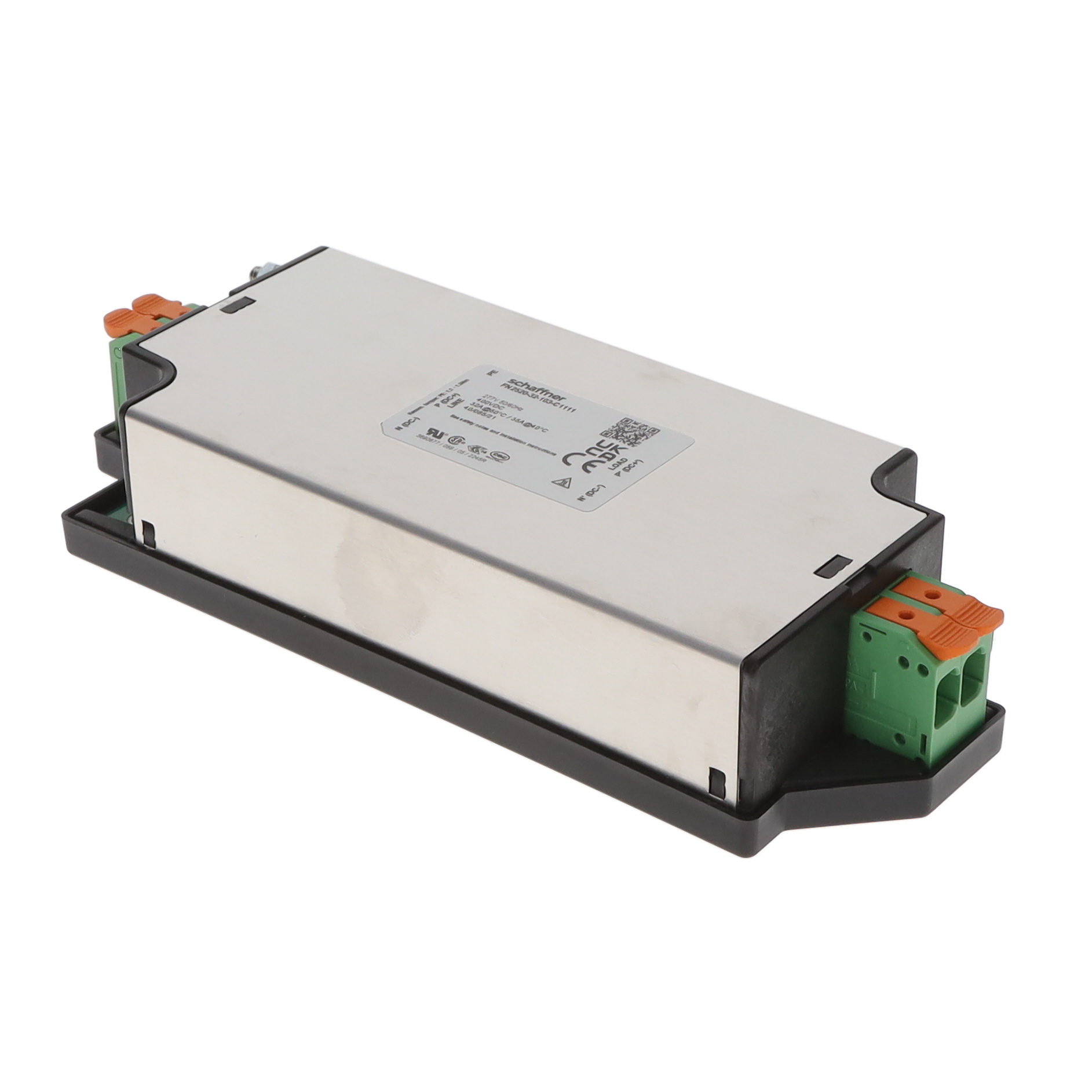

The Schaffner FN2520-32-103-C1111 is a single-phase EMC/EMI line filter rated for 32 A current handling. It operates at 277 VAC and supports up to 400 V DC input. The unit features terminal block connections for both input and output terminals. This low-profile, two-stage filter provides high attenuation performance suitable for demanding industrial environments.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Terminal block input and output connection method
• Low-profile design optimized for space-constrained installations

Applications

• Robotics systems
• Data center infrastructure
• Industrial automation equipment

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm electrical ratings and terminal configuration. Ensure compatibility with existing panel mounting requirements and thermal management specifications before finalizing procurement orders.

Selection Notes

Select this component when high current capacity of 32 A is required in a single-phase application. The terminal block interface facilitates secure wiring in industrial settings. Consider the low-profile form factor if vertical space within the enclosure is limited compared to standard chassis mount filters.

Part Context

This model belongs to the FN2520 series of single-phase power line filters manufactured by Schaffner. The series is engineered specifically for robotics and automation applications requiring robust EMC protection. The product line emphasizes compact dimensions while maintaining high attenuation standards.

Replacement Considerations

Consult official substitution lists from TE Connectivity for direct replacements. Verify that alternative components match the 32 A rating and 277 VAC specification to ensure circuit integrity.
