FN256-16-46

Overview

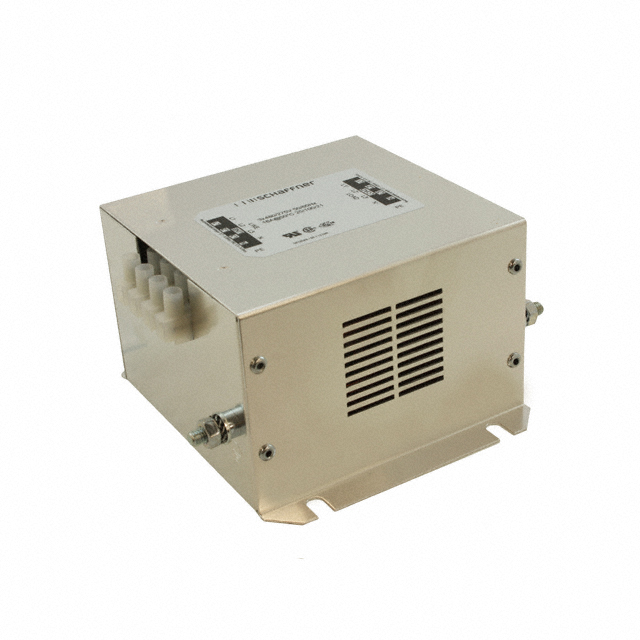

The Schaffner FN256-16-46 is a single-stage AC power line filter designed for chassis mounting. It supports a maximum continuous operating voltage of 480 VAC at 50°C and handles a rated current of 16 A at 50/60 Hz. The unit features flange mounting with screw terminals, ensuring secure installation in industrial environments. Designed for high attenuation and low leakage current, it maintains compact dimensions suitable for space-constrained applications. Operating temperature range spans from -25°C to 100°C.

Feature Summary

• Provides high electromagnetic interference attenuation for AC power lines
• Features low leakage current characteristics for safety compliance
• Utilizes compact physical dimensions for efficient panel integration
• Supports robust chassis mounting via flange and screw terminals

Applications

• High-power motor control cabinets
• Industrial automation systems requiring EMC filtering
• HMI and display projects with external peripherals
• General AC power line noise suppression

Procurement Notes

Verify component status carefully as this specific part number may be discontinued or obsolete. Confirm availability through authorized distributors or TE Connectivity channels. Request updated substitution recommendations if the original model is no longer manufactured. Ensure replacement components meet identical electrical ratings and mechanical mounting requirements for seamless integration into existing designs.

Selection Notes

Select this filter for applications requiring 16 A capacity and 480 VAC rating. Consider the single-stage configuration for standard EMI reduction needs. Evaluate thermal constraints within the -25°C to 100°C operating range. Verify that chassis mounting capabilities align with the enclosure design. Assess leakage current limits against regulatory standards for the target market.

Part Context

The FN256 series represents Schaffner's line of compact AC power filters. This model belongs to the broader family of EMI/EMC solutions provided by TE Connectivity/Schaffner. It complements other variants in the series differing primarily in current ratings and voltage specifications. The series is recognized for balancing performance with physical size in industrial filtering applications.

Replacement Considerations

Similar substitute models include the FN3256H series. Verify compatibility regarding current handling, voltage ratings, and mounting style before implementation. Consult official manufacturer documentation for cross-reference details and ensure all electrical parameters match the original design requirements.
