FN256-36-47

Overview

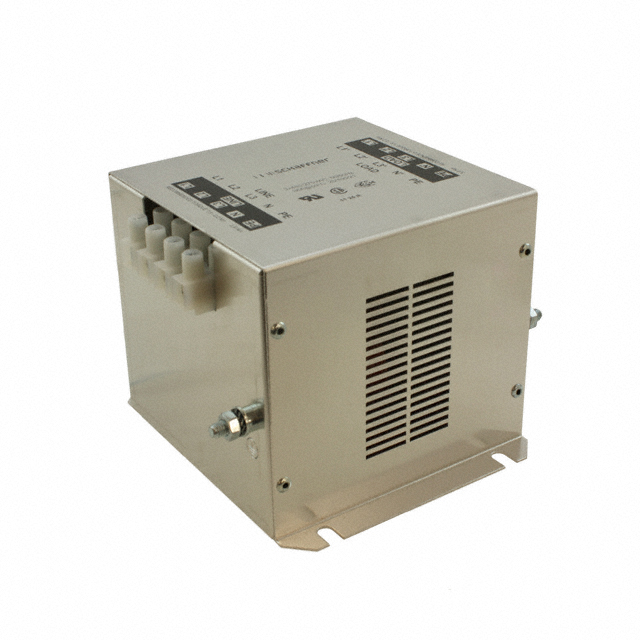

The Schaffner FN256-36-47 is a three-phase wye-configured EMC/EMI line filter designed for general-purpose applications. It handles a current rating of 36 amperes and operates at frequencies up to 60Hz. The unit features a single-stage architecture with terminal block connections and is intended for chassis mounting. It supports an operating voltage of 250VAC and includes a neutral connection capability.

Feature Summary

• Three-phase wye configuration with neutral support
• Chassis mount design for industrial integration
• Single-stage EMI/RFI suppression architecture

Applications

• General-purpose power line filtering
• Equipment with asymmetric loads
• Industrial machinery requiring EMI suppression

Procurement Notes

Verify component status as this product is listed as obsolete and no longer manufactured by Schaffner EMC Inc. Confirm availability through secondary market distributors or authorized surplus channels. Ensure compatibility with existing chassis mounting requirements and terminal block specifications before procurement.

Selection Notes

Select this component for applications requiring a compact, three-phase solution with neutral handling. The 36A rating suits moderate power systems. Verify that the 250VAC operating voltage aligns with system requirements. Consider the chassis mount form factor for space-constrained installations.

Part Context

This model belongs to the Schaffner FN256 series of compact general-purpose EMC filters. The series is engineered for asymmetric load applications. The FN256-36-47 variant specifically denotes the 36A current rating within this family of three-phase line filters.

Replacement Considerations

As the part is obsolete, identify equivalent models from the same manufacturer's current lineup or compatible third-party alternatives. Ensure substitute parts match the 36A rating, three-phase wye configuration, and chassis mount dimensions.
